NANO IGC Flight Recorder

NANO System Examples



The Nano flight recorder is the smallest IGC approved flight recorder designed according to the highest level IGC specification. It features an integrated 66-channel GPS receiver with built-in antenna. The built-in battery allows up to 12 hours of stand-alone operation. Bluetooth is used for easy data exchange with a PDA. Five LEDs display the operational status. A 2 Gb SD card is used for flight data storage. Flights are stored directly in IGC format and are downloadable through USB connection. The battery is charged when the flight recorder is connected to a computer.




NANO III IGC Flight Recorder

The Nano III flight recorder is the smallest flight recorder designed according to the highest level IGC specification with QVGA screen. It features an integrated 56-channel GPS receiver with built-in antenna. Allows up to 28 hours of stand-alone operation with built-in battery, without any power management, power management may increase operating time on battery. Bluetooth is used for easy data exchange with a PDA. Five LEDs display the operational status, when LCD is off. A 4Gb solid state memory. Flights are stored directly in IGC format and are downloadable in a few seconds through USB connection. The battery is charged when the flight recorder is connected to a computer or wall charger via MiniB USB connector. Nano III uses 2048bit digital signature, which is even higher than requested by new GFAC specification.

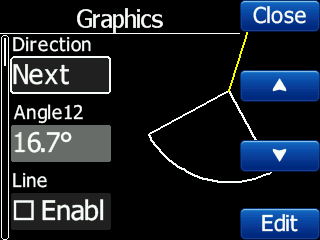

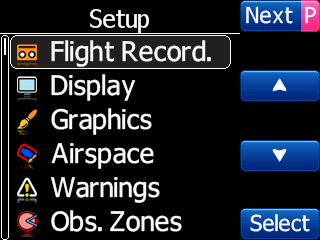

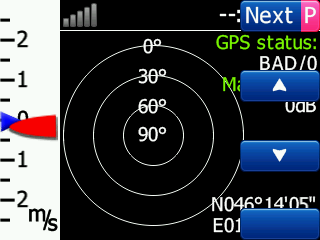

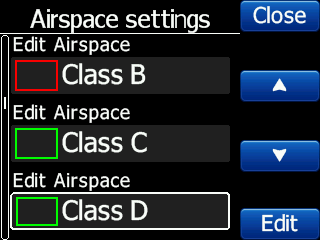

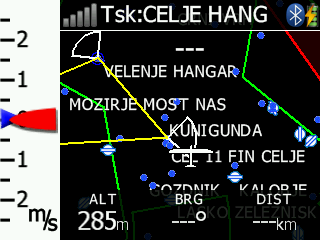

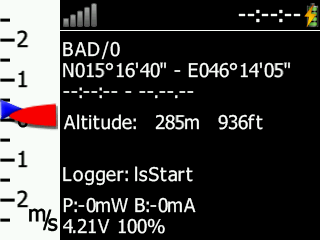

Nano III Screens



Nano/Nano 3 Nano 4 Mounts

Hardware

  • ARM M4 core processor
  • 4 Gbytes of solid state memory
  • Push and lever button
  • 4 navigation buttons
  • 56-channel GPS receiver
  • Plug and play USB interface (mass storage device)
  • USB Compatible with all operating systems (MS Win, Linux, Mac OS)
  • Engine noise level sensor
  • High resolution variometer same technology as on V9/S80 vario
  • Built in vario piezzo speaker
  • High resolution pressure altitude sensor measures up to 16000m
  • Ineretial platform 3 axis accelerometer and 3 axis gyroscope.
  • Integrated LiIon battery  and smart power management, gives you up to 25 hours of independent power supply
  • Easy battery charger via USB port on your notebook, PC or wall charger
  • Robust  ABS plastic housing

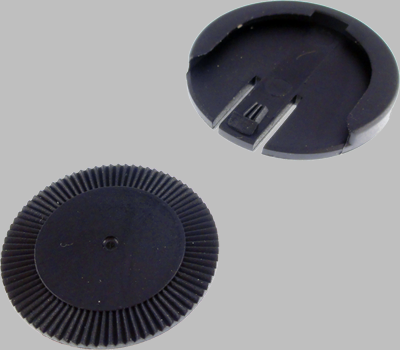

NANO Mounts

  • Dimensions:
    - Diameter of disc: 1" (26 mm)
    - Diameter of base: 1.25" (32 mm)
    - Mounted Height (including adhesive pads): ~0.25" (~6 mm)

    Mounting Instructions:

    1. Clean the surface with alcohol
    2. Put on the 3M adhesive pads
    3. Wait 24 hours and it’s ready to use





NANO 4

Click



Features
  • Integrated flight recorder approved to highest-level IGC specifications
  • 2048-bit digital signature
  • Built in high resolution variometer
  • Display of airspace (CUB airspace file compatible)
  • Display of tasks
  • Task and waypoint navigation (CUP compatible)
  • FLARM, ADS-B, PCAS (Mode C/S transponders) traffic display
  • Built in hardware for inertial platform
  • App. 28000 hours of logger memory (at 1sec recording interval)
  • 15 hours of operation on internal battery with LCD on
  • 25 hours of battery life with power management (LCD turned-off when not in use)
  • Flights stored in IGC format are downloadable through USB in a second
  • Integrated Bluetooth device (SPP)
  • Easy handling (Turn on and go)
  • Simple signalling LED's
  • Engine noise level detector
  • Simple operation using graphical touchscreen and 4 push-buttons
  • Automatic power down after landing (can be set by user)
  • Start logging at power-up (for paragliders or pedestrians)
  • Toggle Bluetooth on and off pushing the rocker switch
  • Adjustable vario volume
  • NanoConfig program for creating declaration and system settings (for PC and Android)

 Display

  • Sunlight readable Color LCD touchscreen
  • 3.5'' (88.9 mm) diagonal screen size (2.1 x 2.8")(53 x 71 mm)
  • VGA 480 x 640 pixels

Size

  • Overall dimensions: 2.6 x 4.1 x 0.6 inches (65 x 105 x 15mm)



Nano 4 RAM Mount

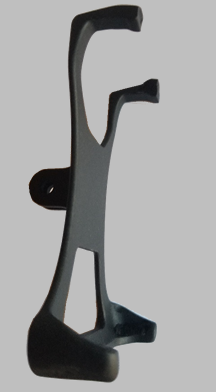

Nano 4 GOPRO Mount

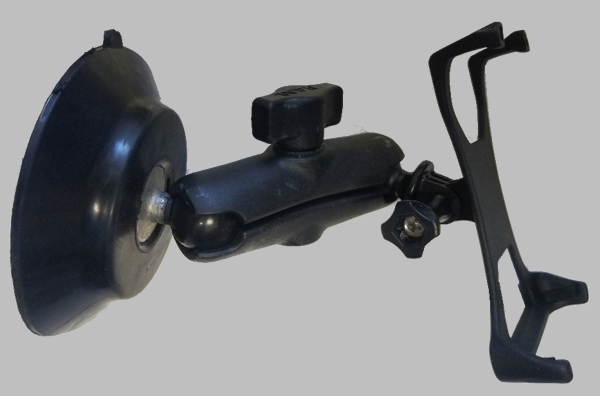

RAMNANO4GOPS

Nano 4 Mount Ram 4" Suction Cup with 3" Arm and 1" Ball GOPRO Mount

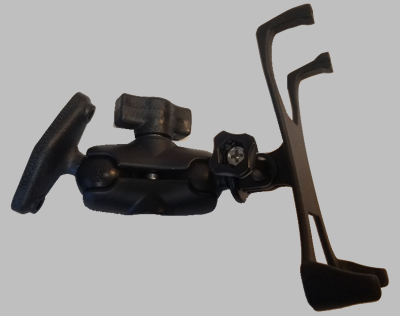

RAMNANO4GOPF2

Nano 4 Mount Ram Diamond Base with 2" Arm and 1" Ball GOPRO Mount

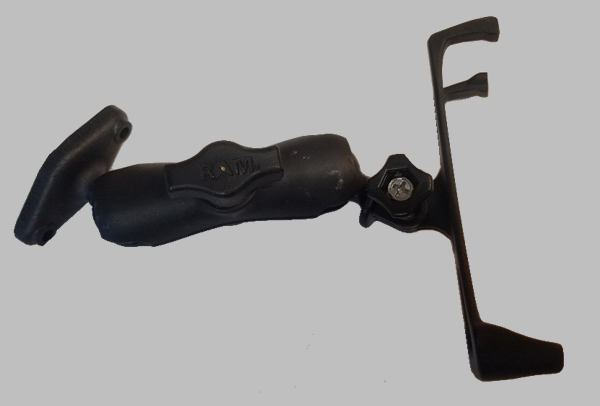

RAMNANO4GOPF3

Nano 4 Mount Ram Diamond Base with 3" Arm and 1" Ball GOPRO Mount

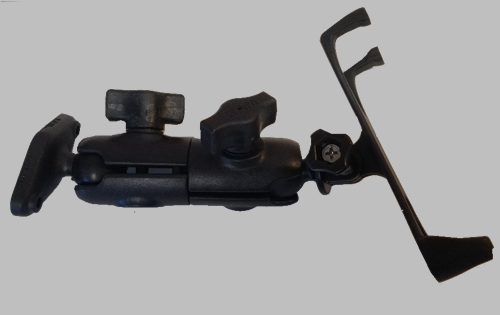

RAMNANO4GOPF35

Nano 4 Mount Ram Diamond Base with 3.5" DS Arm and 1" Ball GOPRO Mount

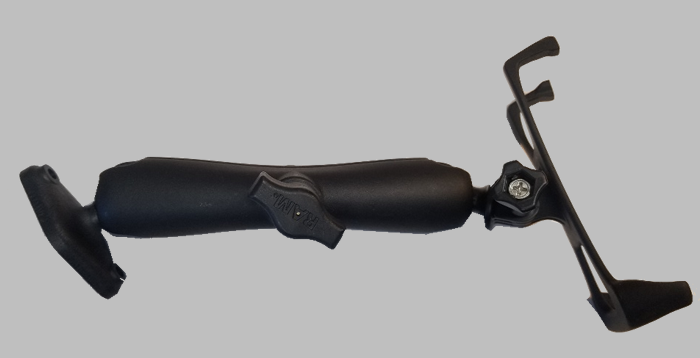

RAMNANO4GOPF5

Nano 4 Mount Ram Diamond Base with 5" Arm and 1" Ball GOPRO Mount





1021001 Nano  LXNAV  IGC Flight Recorder





 IN Stock



1021026 Nano III  LXNAV  IGC Flight Recorder



  3 weeks

1041023 Nano 4 LXNAV IGC Flight Recorder Approved to the highest level IGC Specifications.

Summer Special Call for Price. Until July 1

Only 2 IN Stock

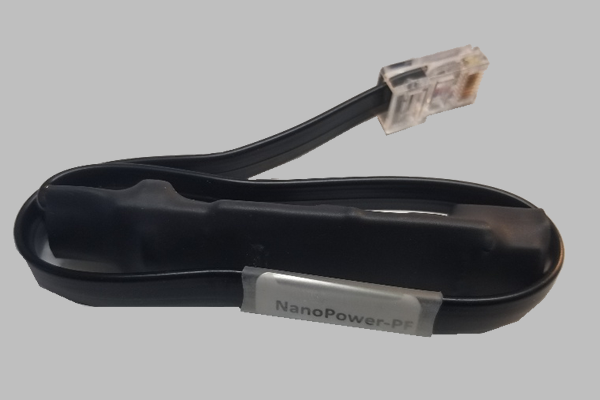

NanoPower-PF NanoPower-PF   Gets 12v from the PowerFlarm powers the NANO 3  connects to Nano 3 with a Mini USB cable or Micro USB cable.  Depending on the model of your NANO



In Stock

Nano34 Mount Mount for Nano/Nano3/Nano4



In Stock

1055039 Li-Ion Battery for Nano  Nano III

Battery can be replaced without affect the IGC security of the Nano or Nano3   open only the battery compartment and not any other part of the Nano. To open the battery compartment, remove the screws from the bottom of the Nano or Nano3.




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
