FLT Line



NAV COM

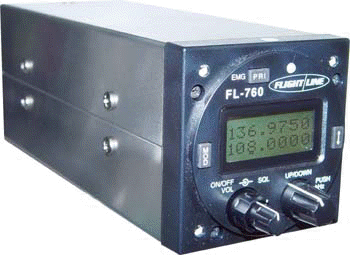

Flight Line 760

2 1/4" Panel Mount Transceiver.
One year warranty.
Frequency range : 118.00 to 136.975MHz (Receive:108.00 to 136.975MHz)
Transmitter
Output power : 5 W (carrier), 16W (pep)
Channel spacing
: 25kHz
Mode : AM (6K00A3E)
Number of memory channels : 32
Acceptable power supply : 11.7 to 33 VDC (Negative ground only)
Usable temp. range : -20℃ to +60℃
Frequency stability :+/- 5ppm
Current drain : TX: 3A(max) RX 0.8A(max) Standby: 300mA
Dimensions : W61 X D159 X H61 (mm)
Weight : 430g/14.11oz
Exposed dial face : 56.4mm 2 1/4.5 inches
Certification: Not TSO
MSRP $699.00....

FL-M1000A/ASPC-201L COMBO
  • Air Band Mobile Radio (FL-M1000A)
  • Vehicle-Mount Whip Antenna (ASPC-201L) with 17 foot Coax Cable
  • Handheld Mic
  • Mounting Hardware


FL-M100A
Designed for use in ground-based airport vehicles or as a base station, the FLIGHTLINE FL-M1000A air band transceiver can be operated with either a hand microphone or a headset. The FL-M1000A features multiple built-in scan functions and selectable audio output (internal/external speaker and/or headphone/headet).

ASPC-201L
Vehicle mount Antenna 108-512 MHz. Snap-in mount provides quick, permanent installation in a 3/8 inch (9.5 mm) hole; no soldering required. Whip is fastened by set screw adapter and may be easily removed for fine tuning or replacement. Cutting chart supplied. Supplied with 17' RG58U cable and UHF Male connector

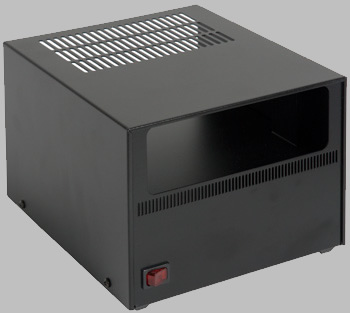

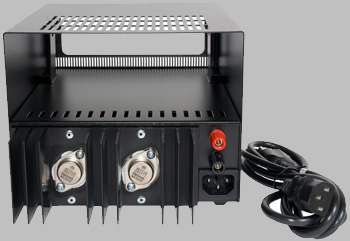

110V/POWER SUPPLY FOR FL-M1000
Part # Description Price Order
1031006 FlightLine 760 Transceiver



1031007 FL-M1000A/ASPC-201L COMBO

1001015  SL-11IF  110V/POWER SUPPLY FOR IC-A110B/F11020/F2020

Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
