Icom

Craggy Aero

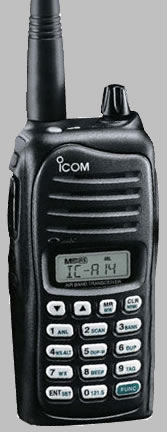

ICOM IC-A14





HAND HELD RADIO/FULL KEYPAD (IC-A14 21)

  • INCLUDES LI-ION BATTERY AND CHARGER
  • 700mW WITH BUILT IN BTL AMPLIFIER
  • 5 WATTS OF TRANSMIT POWER
  • LI-ION BATTERY PACK 2000mAh
  • LOW BATTERY INDICATION & BEEP ALERT
  • 200 MEMORY CHANNELS/10 MEMORY BANKS
  • SIDE TONE & ANL FUNCTIONS
  • BC-179 HOLDER TYPE BATTERY CHARGER
  • MIL SPECIFIED TO MIL-810/C/D/E/F






700mW  loud audio

Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio that’ll cut through cabin or tarmac noise.
* Internal speaker only

Full keypad type


The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-A14 receives NAV and WX channels. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.

Compact, light weight and rugged body

The IC-A14/S series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions



Large capacity Lithium-Ion battery pack

With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14/S series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.

200 channels with memory banks

A total of 200* memory channels can be named with an 8-character channel name for easy recognition. For fast and simple operation, these channels can be grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and memory banks are not available.

BC-179 holder type battery charger

The battery charger, BC-179, securely holds and charges the radio, even in bumpy conditions. The cigarette lighter cable, CP-22, can be used with the BC-179.





Part # Description Price Order
IC-A14  ICOM  IC-A14  Comm Only 110v charging


IC-A14/220 ICOM  IC-A14  Comm Only 220v charging

HM-173 SPEAKER MIC FOR IC-A22/A3/A24/A6

CP-22 Cigarette Lighter Power Cable for IC-A6, IC-A24



ICOM IC-A24/IC-A6
FEATURES:
  •  Durable, stylish body
  •  New channel recall function
  •  Variety of battery packs and case (Compatible with Icom F series battery pack/case)
  •  Simultaneous operating and charging from external power source
  •  VOR navigation function (IC-A24 only)
  •  Dedicated 121.5MHz Emergency key  (Programmed with 121.5MHz homing frequency)
  •  Water resistant, equivalent to IPX4
  •  200 alphanumeric memory channels with memory banks
  •  Side Tone function
  •  ANL function


INCLUDES:



  • Belt Clip, MB-103
  • Carrying Case, LC-159
  • Wall Charger, BC-110AR/DR,  110V
  • Headset adapter, OPC-449
  • Handstrap



Specifications
Part # Description Price Order
IC-A24 IC-A24 NAV/COM HANDHELD TRANSCEIVER

IC-A6 IC-A6 COM HANDHELD TRANSCEIVER

ICCP-20 Cigarette Lighter Power Cable for IC-A6, IC-A24



HM-173 SPEAKER MIC FOR IC-A22/A3/A24/A6

VHF Panel Mount Transceiver

 IC-A210 VHF Airband Transceiver


  • OLED(ORGANIC LIGHT EMITTING DIODE)
  • 121.5MHz ONE TOUCH ACCESS
  • TX/RX 118.0-136.975MHz
  • 12/24V DC POWER SOURCE (11.5-27.5V)
  • 8W OUTPUT POWER
  • 10 REGULAR MEMORY CHANNEL
  • 200 GROUP MEMORY
  • ANL (AUTO NOISE LIMITER)FUNCTION
  • REMOTE CONTROL CAPABLE
  • VFO SCAN





Call for Lowest Price

Part # Description Price Order
1001012  ICOM  IC-A210 Panel Mount VHF Airband Tranceiver


1001013  HM-176 HandHeld Microphone



VHF AIRBAND TRANS/VEHICLE MOUNT (IC-A110-05)

Rugged and reliable for serious ground crew communications. Setting a new standard for ground based communications, the IC-A110 provides durability and reliability in demanding operating environments. Capable of being installed in any vehicle, IC-A110 is adaptable to vehicles working on a 12 V DC as well as a 24 V DC power source.  Comes with vehicle mount and hand mike

FEATURES :

TX power: 36 W typical pep (9 W typical for CW)
118-136.975 MHz
Audio output - internal speaker: 1.5 W, external speaker: 10 W
MIL spec. Meets MIL-STD810

MORE FEATURES :
Headset (side tone): more than 0.1 W w/ 500 ohm load
Channel spacing: 8.33/25 kHz auto selection or 25 kHz only (depending on version)
Capable of operating on 12V DC as well as 24V DC
Front mounted loud speaker
Memory channel name capability
Side tone function
Usable in extreme cold

INCLUDES:
Vehicle Mobile Mount Bracket
Hand Mike
Screws washer and fuses

Part # Description Price Order
IC-A110-05 VHF Airband Trans/Vehicle Mount


ASPC-201L Vehicle mount Antenna 108-512 MHz.
