Becker Avionics Transceiver
|
The new, extremely small and light-weight transceiver offers
760 channels and is certified for use inVFR and IFR equipped aircraft.
Iit is ideal for installation in gliders, motor gliders and small aircraft
due to its low power requirement and 2 1/4 inch round panel cutout. Due to
the implementation of the most modern technology it has been possible
to minimise the depth of the module, including the connector, to less than 9
inches. The equipment has an output of 5 . 7 Watts carrier (16W PEP).
A standby frequency and 99 memories can be easily programmed and recalled.
The AR 4201 has intercom, panel-lighting, voltage indicator, an AF-input as
well as an automatic test-routine as standard functions.
Two dynamic and two standard microphones can be connected
without any alterations. The clear display shows the active frequency and
either the standby frequency, the memory channel used or the supply voltage
and also the external temperature (with the optional temperature sensor).
This equipment is useful in a wide range of aircraft and is also optimal for
use at flying schools and flying clubs, who place a lot of value on quick,
safe and simple operation. |
Manual
Specifications
| Part # |
Description |
Price |
Order |
| 1003000 |
Becker AR4201 VHF/AM Transceiver |
|
 |
| 1003001 |
Becker 1K043 Temperature sensor for AR4201 Transceiver, with
1.5m cable |
|
|
| 1003002 |
Becker 1PL042 Loudspeaker and distribution box |
|
|
| 1003003 |
PPT with 3 meter cable and click feel feature |
|
|
| 1003004 |
Becker 1PM004 Gooseneck Dynamic Microphone with 1.5 meter
Cable, DIN connector and mounting |
|
|
| 1003005 |

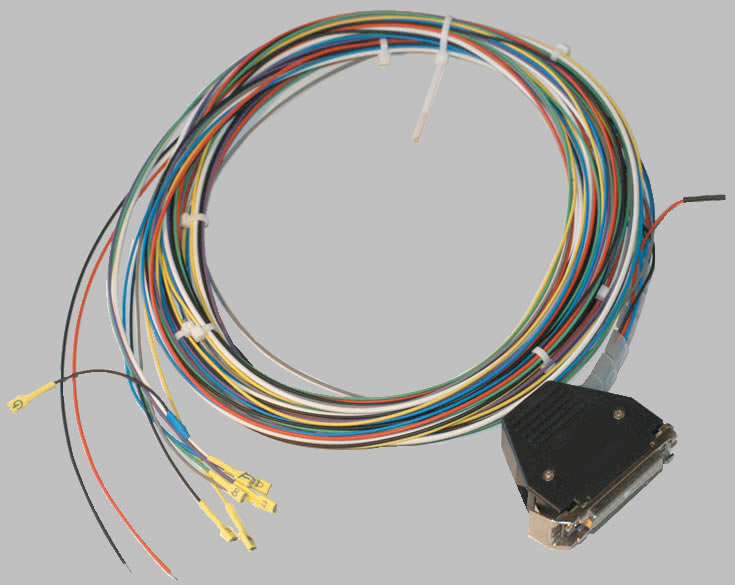

Wiring Harness for Becker 4201 Transceiver |
|
|
Becker Avionics Compact ATC Transponders
|
Not all transponders are created equal.
There are three "modes:"
-
Mode A - the basic transponder ability to reply to
interrogations with a 4-digit code (no altitude information).
-
Mode C - the reply signal includes both a 4-digit code
and the aircraft's pressure altitude, usually obtained from a separate
altitude encoder connected to the static system like the altimeter.
-
Mode S - a more sophisticated and expensive system, the
reply signal also includes information identifying the aircraft, and other
data.
|
Manual
Specifications
| Part # |
Description |
Price |
Order |
| 1003006 |
Becker Mode C Compact 175 W ATC Transponder ATC 4401-1-175 |
|
|
| 1003007 |
Becker Mode C Compact 250 W ATC Transponder ATC 4401-1-250 |
|
|
| 1003010 |

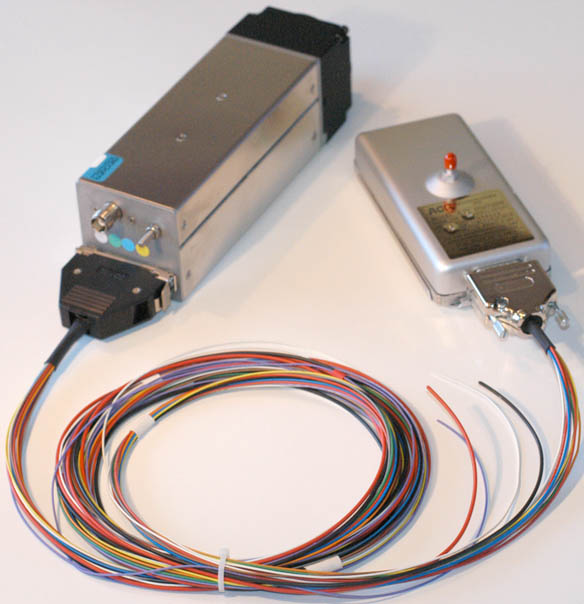

Harness for Becker ATC Transponder & ACK A30 Encoder |
|
|
| 1003008 |
Transponder Stub Antenna/BNC 104-12 Select BNC
connector and cable length at Add to cart if required |
|
|
| 1003009 |
ACK Altitude Encoder A-30-4 |
|
|
| 1003011 |
Cormant Blade Antenna |
|
|
| 1003012 |
AK 450 Altitude Encoder AmerKing |
|
|
| 1003014 |
Becker Mode S Transponder 150W BXP6401-2-(01)
Includes
0572.942-915 Address module |
|
|
| 1003015 |
Becker Mode S Transponder 250W BXP6401-1-(01)
Includes 0572.942-915 Address module |
|
|
|
