Comant Antenna
| DME/TXP MINI HIGH SPEED/BNC (CI-305) |
| Frequency · 960-1220 MHz |
| Electrical |
| Frequency |
960 - 1220 MHz |
| VSWR |
1.8:1 Maximum |
| Polarization |
Vertical |
| Radiation Pattern |
Equivalent of l / 4
Stub |
| Impedance RF |
50 Ohms |
| Resistance DC |
Open Circuit |
| Power RF |
1 KW Peak |

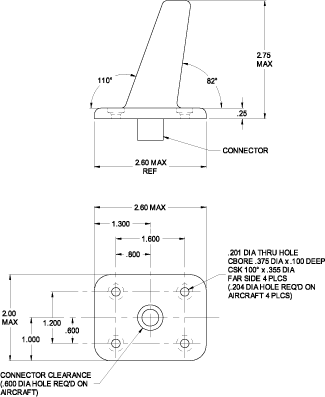

| Mechanical |
| Weight |
0.3 lb. Maximum |
| Height |
2.75 in. Maximum |
| Material |
Molded Radome |
| Finish |
White Polyurethane Enamel (Standard) |
| Connector |
(see above P/N's to order the choice of
connector) |
| Gasket |
B30503 |
| Environmental |
| Temperature |
-55°C to +85°C |
| Altitude |
70,000 ft. |
| Air Speed |
400 Knots TAS at 35,000 ft. |
| Federal Specifications |
| RTCA Environmental |
DO-160A |
| Environmental Category |
AE1/A/JXXXXXXXXXXX |
| FAA TSO |
C66b, C74c |
| RTCA MOPS |
DO-144, DO-189 |
|
|
