Craggy Aero is an Authorized Dealer & Service Center
for LX navigation
LX
navigation Catalog

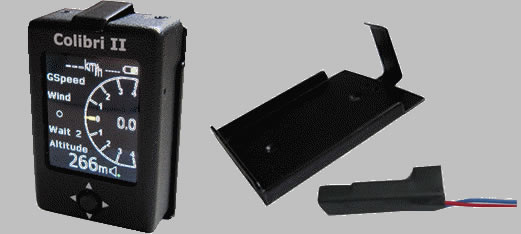

LX navigation IGC Flight Recorder Colibri II
|
Mount Option-Power/Data Option
Colibri II Details
Colibri II Manual
IGC Approved |
Colibri II
Colibri II Specifications
-
Completely new design approach
-
Sunshine readable colour display as a central part
of the system
-
Simple manipulation via one multifunctional switch
-
Extremely small outline: 40 x 62 x
22 mm
-
Built in GPS receiver and GPS antenna
-
NMEA output
-
Internal battery ensures up to 7 hours of autonomy
-
Built in battery charger (5V via USB cable)
-
External power input
-
SD card as a data transfer medium
-
Vario meter with audio as a standard solution
-
Flight recorder
-
Basic navigation
|
|
|
Options:
-
Mounting frame and power
-
Adapter which is plug
and play
-
Compatible to LX 166, LX
1606
-
Can be used as a Flarm
external display
-
Ask for set price
Colibri II – LX Mini Map
- II or MM pro
|
| Part Number |
Description |
Price
|
|
LX Navigation - MiniMap II
|
Portrait
|
Landscape
|
 |
|
Technical characteristics
The focus of the system is Windows CE 5
embedded computer module accompanied
by a micro-controller which main task is management
of push buttons and rotary switches.
A brilliant 4.3 inch display with touch screen guaranties
good readability also under the hardest sunshine
conditions.
The unit receives 12V power via USB mini type connector.
The same way is also used for data link. Data link is
serial RS 232 standard, not USB.
Touch screen is a standard solution.
The program could run from SD card or from internal Flash.
Different programs can be used, some of them are:
-
LK 8000*, XCsoar as free ware programs
-
SeeYou Mobile and Strepla are programs which need license
-
LX Navigation has upgraded original LK 8000 program
so far that rotary switches and push buttons could be used for sovereign
operation.
|
GPS connection
LX Mini Map II needs GPS signal input in form of NMEA at RS
232 standard levels
GPS connection
- Colibri II, Colibri, LX 20, VL….
- Flarm: LX Flarm Red Box, LX Flarm Mini Box, original Flarm units
Suggested Varios
- LX 166 - LX MM II (all connections plug and play)
- LX 1606 - LX MM II (all connections plug and play)
- LX MM II can be driven also from LX 5000/7000/7007
|
Options
Some usable options are offered to LX MM II.
Remote stick Manual
 |
LX Navigation -
ZEUS
 |
 |
-
5.5 inch
colour display
-
landscape
or
portrait installation solution
-
simple conversion from landscape to portrait and vice versa
-
acceptable size: 145x
106 mm;
cut out 144x102 mm
-
simple and effective handling via 8 push buttons and two rotary switched
-
each rotary switch also has a push function
-
every push button supports two functions after using of short and long
press philosophy
-
software completely developed by LX Navigation
-
two GPS inputs for safe operation
-
3D terrain display
-
AHRS (artificial horizon)option as an integral solution
-
Flarm option
-
IGC approved flight recorder
-
485 system bus, CAN Bus ready for future
-
USB port (A size) on the front panel, for all kind of data transfer
-
SD card interface (micro) for Flarm
-
double seater configuration
-
LX free airport and airspace data base
-
worldwide terrain data
|
Available |
| Part Number |
Description |
Price
|
|
|
1011039 |
LX Zeus Flarm - IGC
(promotion price) deliveries after May 2012 IGC approval (Colibri II),
wiring , Flarm dipole antenna, Flarm SD (optionally Flarm IGC), LED external
display Lxe, USB port, SD card for Flarm |
 |
 |
|
1011040 |
LX Zeus - IGC (promotion price)
deliveries after May 2012 IGC approval (Colibri II), wiring , Lxe, USB port |
 |
|
|
1011041 |
LX Zeus (promotion price)
deliveries after May 2012 Wiring , Lxe, USB port, needs extrernal GPS |
 |
|
|
1011044 |
AHRS internal LX Zeus option |
 |
|
LX Navigation - MiniMapPro
|
|
 |
|
 |
LX MiniMap PRO -
Cambridge 302 System
-
Connect the MiniMap PRO to your CAI 302
-
Operation via buttons or touch screen
- LX
version of LK8000 software
-
Remote Control Stick option
- Plug
and Play
|
|
LX MiniMap PRO, Colibri II,
USB D Vario Module
System
-
Complete System
- LX
version of LK8000 Software
|
-
Full
panel integral solution
-
Operation via 6 push buttons and four rotary switches
-
Each
rotary switch has additionally a push button
-
Excellent sunshine readable display (400x800 100o cd) with touch
-
Outline: 135x82x55 mm
-
Connectable to LX Navigation vario unit
-
Two COM
ports
-
Auxiliary power input
-
Colibri
II connectable without power adapter
-
4x LX
system bus connectors for extensions
-
Worldwide maps and airspace files available
-
Portrait and also landscape orientation possible
-
SD card
interface for easy data exchange
-
Traditional LX installation philosophy, 4x M6 bolts with holes for knob
axels
-
A
system which offers an excellent price/efficiency ratio
|
|
Varios & Flight Recorders
| LX 1606 A single
57mm panel mounted competition capable unit when connected to a PDA/PNA
running: SeeYou Mobile, Win Pilot, new USB-D vario color display
Direct PowerFlarm Input
Manual
Short Manual
LX1606 Settings
Instructions |
LX 166
Variometer with final glide computer. Connected to Colibri and SeeYou Mobile
or WinPilot it becomes a very useful tool for glider pilot.
Manual |
LX 16D Small (57
mm) vario with audio, averager and flight time.
Manual |
|
Vario Specifications |
 |
 |
LX 7007
|
LX 7007C |
LX 7007 CB
|
-
LX 7007 successor with colour display and much more
-
Easy and cost effective conversion of all
existing LX 7007 to LX
7007 C
-
80 mm air-norm remains
-
No risk after buying of LX 7007 pro IGC just now, as
you will get free retrofit upgrade to colour
-
Free SW updates until end of 2013
-
Brilliant sunshine readable colour display
-
Proven LX operating system and LX software
-
Extremely low power consumption,
350 mA incl. colour vario
-
All LX 7007 features remain, but with many adaptations
-
Much faster computing thanks to use of a new micro-controller technology
-
All benefits of LX 7007 remain; no need to learn new operation
techniques
-
Options: Flarm, Remote control, second seat repeater.....
|
-
3,5 inch sunshine readable colour display
-
Easy and cost effective conversion of all existing LX
7007 to LX 7007 CB
-
Small outline: 112x70 mm
-
No risk in buying a classic black and white LX 7007
pro IGC just now, as you will get a retrofit upgrade to colour at a
promotion price in Winter 2011
-
All LX 7007 features remain but with many new
adaptations
-
Much faster computing thanks to use of a new
micro-controller
-
All benefits of LX 7007 remain; no need to learn new
operating techniques!
-
Options: Flarm, Remote Control, Second Seat Repeater,
Compass, Voice Module....
|
| Part Number |
Description |
Price
|
|
|
1011034 |
LX7007 C with Flarm option IGC approval, wiring ,GPS
antenna, Flarm dipole antenna, Flarm LED external display Lxe, integral SD
card interface with SD card |
2 Weeks |
|
|
1011035 |
LX7007 C (without Flarm) IGC approval, wiring ,GPS antenna,
Lxe, integral SD card interface with SD card, |
2 Weeks |
|
|
1011036 |
.LX7007 CB with Flarm option IGC
approval, wiring ,GPS antenna, Flarm dipole antenna, Flarm LED external
display Lxe, integral SD card interface with SD card, color vario unit |
2 Weeks |
|
|
1011037 |
LX7007 CB (without Flarm) IGC approval, wiring ,GPS antenna,
Lxe, integral SD card interface with SD card, |
2 Weeks |
|
|
