Vario Information and Features See Below

Testing Vario Pneumatics System

Part Number Description
1021018 S3 LXNAV Simple Standalone digital vario, altimeter, speed to fly calculator Scale in Kts

     In Stock
S3BUPAC Craggy Aero S3 Backup Battery Pack   Holds 8 AA batteries ON-OFF Panel switch will power the V3 for approx 15 hrs.

Switch has 2 positions Main Glider battery,  Backup battery.

  In Stock
V3UPDA V3  Firmware Update cable,  is used to update the firmware in a S3 variometer with the LX S7 PC update tool. 12V power leads are providing for powering the S3 with a 12V battery or 12v wall power supply.  If you PC does not have a serial port you will also need a USB to serial adaptor.

In Stock
1021042 S100 LXNAV standalone digital speed-to-fly variometer with IGC Recorder 80mm   AHRS Option available



In Stock

1021042D S100D LXNAV standalone rear seat repeater  digital speed-to-fly variometer with IGC Recorder 80mm



1021041 S10 LXNAV standalone digital speed-to-fly variometer with IGC Recorder 57mm   AHRS Option available





In Stock

Hawk Winds License

+$1190

1021041D S10D Rear Seat Repeater 57mm PDA Port







Hawk Winds LXNAV LX80xx/LX90xx,  LXNAV S10/S100 AHRS/Hawk Winds  License  Click for Information

HAWK has been developed by Heinrich Meyr and Peng Huang and is licensed to LXNAV.

The HAWK option consists of all 3 functions: Variometer, Wind and AHRS

Hawk Setup

More Hawk Setup

Compatibility:

HAWK will run on LX80xx/90xx devices from 4th Generation onwards and V8/V80 vario only.

HAWK will run on LXNAV S10/S100 Standalone Vario devices

The easiest way to check for compatibility with HAWK is to install the latest version of the device firmware and go to Setup->About.

Software:
To enable HAWK you can install the latest firmware version, which you can find on the LXNAV Firmware page

  https://gliding.lxnav.com/lxdownloads/firmware/

A request for a HAWK demo option expires in 3 approx months HAWK Demo request • LXNAV Gliding

When you purchase you will receive a license file and instruction by email.



License will be emailed.

1021036C S8 CLUB LXNAV 57mm standalone digital speed-to-fly variometer AHRS Option available. Select Cables at Add to Cart

    8 Weeks
1021036 S8 LXNAV 57mm standalone digital speed-to-fly variometer AHRS Option available. Select Cables at Add to Cart

  8 weeks



1021029C S80 CLUB  LXNAV standalone digital speed-to-fly variometer   AHRS Option available Select Cables at Add to Cart

   Only 1 in Stock
S8C-TSK S8x software Task option S8, S80x Club

Software Option

S80C-AS S8x software Airspace option S8, S80 Club

Software Option

S80C-INP S8x software Inputs option S8, S80 Club

Software Option

S80C-PROFIL S8x software Profile option S8, S80 Club

Software Option

1021029 S80 LXNAV standalone digital speed-to-fly variometer   AHRS Option available Select Cables at Add to Cart

  Only 1 In Stock
1021030 S8/80/S10/100 Vario Module AHRS Option

  In Stock
1021020 S7  Bluetooth Module In Stock
CC-NP-Oudie 1 Cable Oudie   Mini USB to RJ45 S7 PDA  or Nano Power Converter  Oudie SN Old less than 25xxx, 26xxx and 27xxx

Start the Oudie and go Menu- About to get the program SN

Cable Mini US In Stock
CC-NP-Oudie2-2R Cable Oudie   Mini USB to RJ45 S7/S8x/S10x  PDA  or Nano Power Converter  Oudie SN New greater than  25xxx, 26xxx and 27xxx

Start the Oudie and go Menu- About to get the program SN

Cable Mini US In Stock

1041019

Flap Sensor does not include splitter   Connect to the 485 Buss  LX80xx, LX90XX  Select version 485  or  CAN  S8/S80/S10/S100  At Add to cart

How to Set Up S7, S8 ,S80, S10, & S100 connections.

S-Series  Stand-alone variometers

LXNAV has the most advanced vario systems available today. They all have a built in inertial platform (3 axis accelerometer, 4 axis gyros) which are used for precise wind calculation, AHRS and fast vario response. In the latest vario’s, the mechanical needle is replaced by a graphic needle. This graphical needle responds faster than a stepper motor used for driving a conventional mechanical needle.

Main Software (except for the S3 vario) are:

Voice module built in  Final glide calculation

Electronic compensation *1

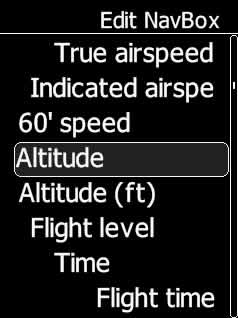

Customizable navboxes

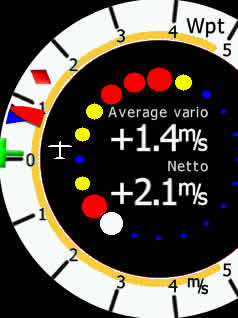

Thermal assistant

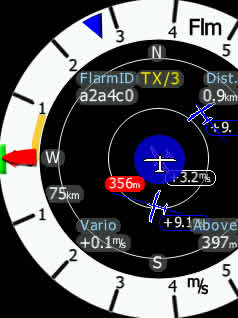

Flarm warnings and radar *2

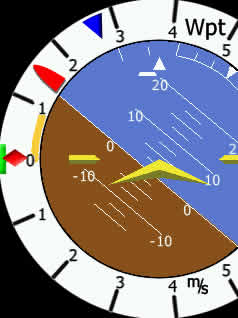

AHRS indication option *1 *2

Waypoint navigation   Task navigation *1 *2

Airspace indication *2

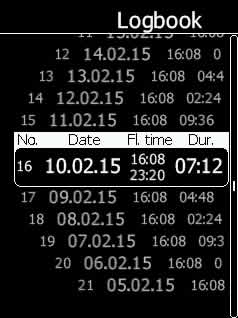

Logbook

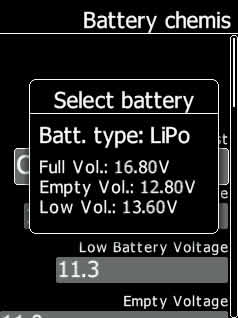

Accurate battery voltage measurement



*1 not for Sx/xx. *2 not for S7.

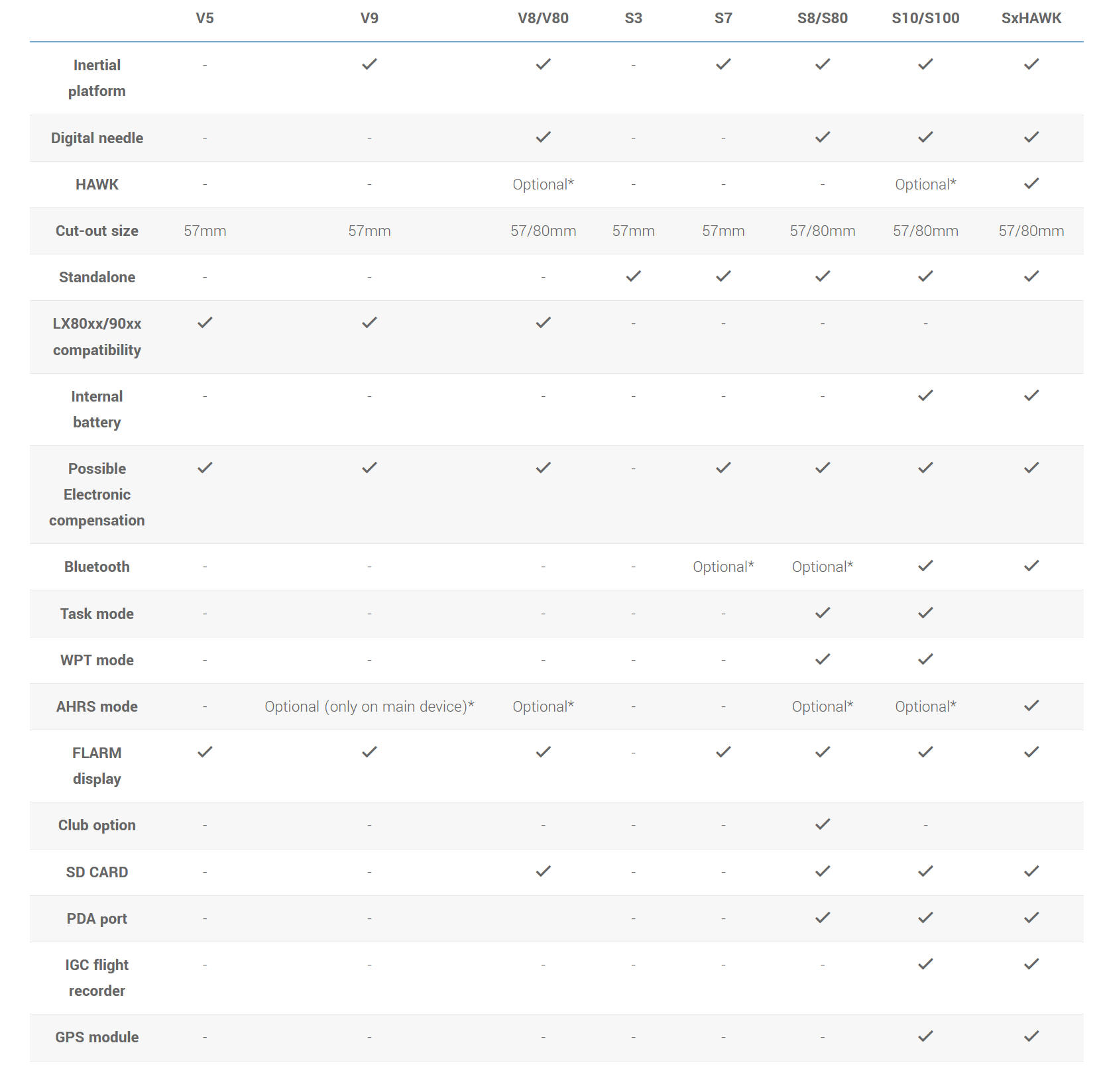

Features S3 S8/S80 Club S8/S80 S10/S100








Pointer Type Mechanical Graphical Graphical Graphical
Dimensions 57 mm 57/80 mm 57/80 mm 57/80 mm
Control knobs with rotate and push-button functions 1 2 2 2
Push-buttons 3 3 3
microSD Memory Card Slot on Face of Vario
Speaker Built-in External External External
MacCready Ring Functionality N.A. N.A. N.A.
Speed-to-Fly (push/pull arrows)
g-meter
AHRS (artificial horizon) Sensors Built-in
AHRS (artificial horizon) Color Display in Vario Software
Option
Software
Option
Software
Option
Complete Inertial Platform with 3 axis
+/-6g accelerometer and 3 axis gyroscope
Ambient Light Sensor
GPS/FLARM Input Port
PDA Output Port
Compass Module Optional Optional Optional
Final Glide
(when connected to external GPS)
Navigation - Waypoints
(when connected to external GPS)
Navigation - Tasks
(when connected to external GPS)
Software
Option
Waypoints Displayed
Airspace Displayed Software
Option
FLARM Traffic
ADS-B Traffic
PCAS (Mode C and Mode S) Traffic
(approx. distance and relative altitude)
External Outside Air Temperature Probe
Pneumatic Sensors 1 3
SC (speed command) and VP (vario priority) Digital Inputs 0
4 Assignable Digital Inputs (airbrakes, landing gear, etc.) 0 Software
Option
Pilot Profiles Software
Option
Backup Battery (~3 hours) Built-in
BlueTooth Optional/External Optional/External
Hawk Software Option
AHRS Software Option Software Option
IGC Approved GPS Flight Recorder with Engine Noise Level Sensor MOP required for Jet or Electric



S3  LXNAV Standalone Vario



S3 High performance, stand alone, high accuracy digital vario, altimeter and speed to fly caclculator.

 Simple solution for beginners or as a backup system.

High performance standalone ,high accuracy digital vario meter and speed to fly calcuator.

The LXNAV S3 is a standalone digital variometer and speed to flycalculator. Mechanical needle driven by stepper motor allows fast response and very accurate vertical speed indication. A two-inch 320x240 sunshine readable screen displays user adjustable parameters. An integrated rotary switch with push button is used to setup all the parameters. Integrated logbook.

LXNAV VS Manual



Features

  • High accuracy (cm) variometer and altimeter.
  • Preloaded almost all glider polars
  • Fast manipulation an settings with one rotary knob
  • Logbook
  • Display of 3 different values (set by user)

Size and weight

  • 81mm x 81mm x 50mm
  • Weight: ~156g

Input and output

  • Rotary knob with push function for Mc,Bal,Bugs and other settings
  • Audio output
  • Serial RS232 input/output for firmware update only

Power supply

  • 95mA-135mA at 12V depending on LCD brightness, without audio

S8 57mm LXNAV Standalone Vario & AHRS

Standard 57mm variometer with extremely powerful processor • Using MEMS inertial platform and pressure sensors • built in optional  AHRS • (320x240 pixels) sunshine readable • V8  Modular with LX9070, LX9000, LX8000, LX8080 or standalone device • Fast wind calculation 50 times per second.



Features

  • ARM  Cortex-M4 processor running on 160MHz
  • External SD card for configuration, firmware update
  • QVGA sunlight readable screen with 1200nits
  • 3 push buttons for setting adjustments
  • ALS (ambient light sensor)
  • Optional AHRS

Power supply

  • Power input 6-18V DC
  • Consumption ~100mA at 12V

Size and weight

  • 57mm
  • Weight:  ~156g



S80 LXNAV Standalone Vario & AHRS

Standard 80mm variometer with extremely powerful processor • Using MEMS inertial platform and pressure sensors • built in optional  AHRS • 3.5” high brightness screen (320x240 pixels) sunshine readable • V 80 Modular with LX9070, LX9000, LX8000, LX8080 or standalone device • Fast wind calculation 50 times per second.



Features

  • ARM  Cortex-M4 processor running on 160MHz
  • External SD card for configuration, firmware update
  • 3.5'' QVGA sunlight readable screen with 1200nits
  • 3 push buttons for setting adjustments
  • ALS (ambient light sensor)
  • Optional AHRS

Power supply

  • Power input 6-18V DC
  • Consumption ~100mA at 12V

Size and weight

  • 81mm x 80mm x 45mm
  • Weight: ~260g
S10/100 LXNAV Standalone Vario & AHRS IGC Recorder







Standalone digital variometer, final glide calculator, IGC flight recorder and navigation system with moving map. • Extremely bright 3.5’’ (9cm) color display, readable in all sunlight conditions with the ability to adjust the backlight. • Two rotary switches (knobs) with push button function and three push buttons are used for input. • Flarm and PDA inputs/outputs • Flarm Indication, when Flarm is connected to the GPS port • Additional Flarm radar screen and artificial horizon (optional) • Inertial assisted high precision pressure sensors • Built-in voice module and AHRS (enabled optionally) • IGC high level approved flight recorder • Integrated Bluetooth module • Internal battery with up to 3h autonomy • Integrated GPS module • Easy firmware upgrades via SD card • fast wind calculation with external compass • built in battery which servers up to 3h of operation • Bluetooth integrated • Indicator Ψ80mm
  • Bluetooth integrated
  • Built-in Battery which serves up to 3h of operation
  • High level approved IGC flight recorder with ENL
  • Built in GPS module
  • ARM Cortex-M4 processor running on 160MHz
  • 3.5'' QVGA sunlight readable screen with 1200nits
  • QVGA (320*240pixels) sunlight readable display
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • inertial platform: 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation - AHRS can be activated with the code)
  • Smooth audio output
  • Audio equalizer
  • integrated synthesized speech output
  • audible thermal assistant
  • External SD card for configuration, flarmnet and firmware update
  • 2 rotary switches (knobs) with push button function and 3 push buttons are used for input
  • ALS (ambient light sensor)
  • 6 digital inputs - SC, VP + 4 custom defined
  • 57mm/80 mm air norm size





S7 Blue Tooth Module

  • Specially designed bluetooth module for S7, S8, S80.
  • Reduce one cable to PNA. With plug and play installation.
  •  Makes communication between S7 and PNA even easier.




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
