LXNAV Accessories

Up Stick Functions

LX NAV Cables

Display Cables

  • CC-NP-232 D - Connection cable, nano power - generic RS232 RJ45 to DB9F
  • CC-NP-Oudie D - V7 to Oudie Mini USB to RJ45
  • V7-Ultimate Le - V7-Ultimate Le Data Cable RJ45 to DB9 (no Power)
  • V7-Ultimate Le57 - V7-Ultimate Le57 Data Cable RJ45 to RJ45 (no Power)
  • V7-Bluetooth Module
  • V7, S8/S80, S10/100  to KOBO Mini USB to RJ45

GPS Cables

  • lx5pf-ca - Cable LX8000/8080/9000 (5P) PowerFlarm(RJ45)
  • V7-GPS-232 G - Connection cable,V7 GPS to Generic RS232 RJ11 - DB9F
  • V7-GPS-PF G - Connection cable,V7 GPS to Power Flarm RJ11 - IGC RJ45
Display Cables
CC-NP-232 D Connection cable, nano power - generic RS232 RJ45 to DB9F
CC-NP-OudieD3 V7, S8/S80, S10/100  to Oudie Mini USB to RJ45
V7-Ultimate Le V7-Ultimate Le Data Cable RJ45 to DB9 (no Power)
V7-Ultimate Le57 V7-Ultimate Le57 Data Cable RJ45 to RJ45 (no Power)
CC-NP-KOBO V7, S8/S80, S10/100  to KOBO Micro USB to RJ45
GPS Cables
lx5pf-ca Cable LX8000/8080/9000 (5P) PowerFlarm(RJ45)
V7-GPS-232 G Connection cable,V7, S8/S80 GPS to Generic RS232 RJ11 - DB9F
V7-GPS-PF G Connection cable,V7, S8/S80GPS to Power Flarm RJ11 - IGC RJ45
CC-NP-LX Connection cable,S7/S8/S80 GPS to NanoPower Converter RJ11 - RJ45

LX NAV Assessories

Remote Stick Controller

LXNAV remote stick is designed for three different versions.
  • Standard version
  • Shempp Hirth version with red starter button for M gliders
  • EB28 version with trim switch

Standard remote stick is also designed for different diameters of command handles.

  • 19.3mm (DG, LAK),
  • 20mm (SH, LS, Stemme, Apis, EB29),
  • 24mm(Schleicher, Pipistrel Taurus, Alisport Silent, EB28)
  • 25,4mm (JS).

Click to see Stick Functions

Remote Stick Controller CAN for LX S80, S8

LXNAV remote stick CAN for  S80, S8 Vario
  • Standard version
  • Shempp Hirth version with red starter button for M gliders
  • EB28 version with trim switch

Standard remote stick is also designed for different diameters of command handles.

  • 19.3mm (DG, LAK),
  • 20mm (SH, LS, Stemme, Apis, EB29),
  • 24mm(Schleicher, Pipistrel Taurus, Alisport Silent, EB28)
  • 25,4mm (JS).

Click to see Stick Functions

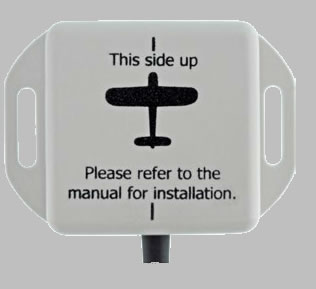

Magnetic Compass

The LX Magnetic compass comprises of a 32bit microcontroller combined with 9 sensors (3 axis, accelerometers, magnetometers), to generate a very accurate measurement of magnetic heading (compared with GPS calculation) • The Magnetic heading is tilt compensated, calculations are performed 50 times per second and produce a stable reference heading for wind calculations and course change and direction information • The Compass automatically calibrates itself during flight • The LX Magnetic compass can be added to any existing or new LX90xx or LX80xx units through a standard RS485 bus connection.



Bluetooth Module

Specially designed Bluetooth module for S7/S8/S80 • Plug and play installation

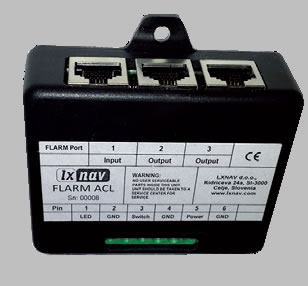

Flarm ACL

Be visible • Small electronic box, that activates LED strobe light in the moment of Flarm collision allert • The box works also as flarm splitter • More than two years using in Alexander Schleicher gliders for driving strobe LEDs



485 Splitter

                            Nano Battery



Flap sensor



Flap sensor & Indicator

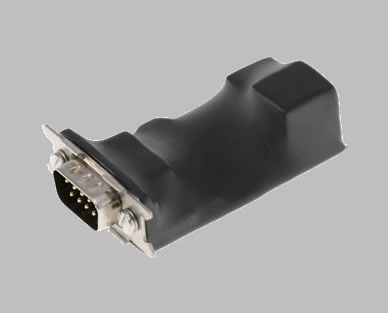

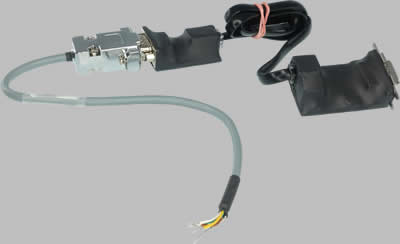

RS 232 Bridge

Connects LX9xxx and LX8xxx with different types of radios and transponders, forwards configurable NMEA sentences for MODE S transponder or simple NMEA/Flarm output for PDA or FlarmView • Supported radios and transponders:

  • ATR833

  • Becker

  • Dittle

  • Trig

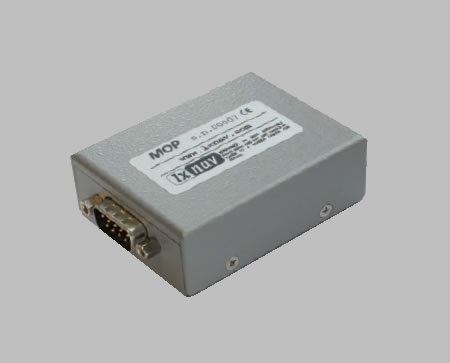

MOP • MOP2

IGC approved sensor for gliders with JET engines

MOP2 IGC approved sensor for electric propulsion gliders

Connects to LX9000, LX8000 and LX8080 via RS485 bus

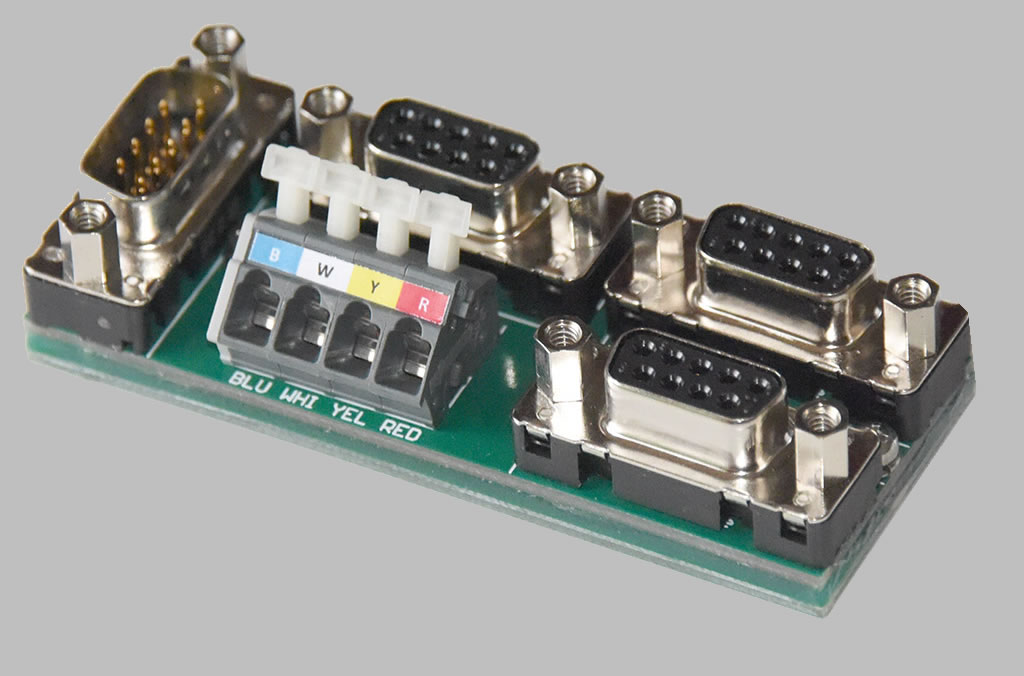

485 Splitter Unit

485 Splitting Unit

Nano, Nano III Battery

Nano Battery:  You can replace the Nano battery without losing the securtiy seal.  Do not remove the internal seal.





Flap Sensor

Flap sensor measures position or angle of flaps • It’s very useful to direct pilot with correct flap setting

Connect to the 485 Buss  LX80xx, LX90XX



Flap sensor & Indicator

Flap sensor with panel indicator.

WiFi

The LXNAV WiFi option is a plug and play module which opens the door to the Internet for the LX9xxx* and LX8xxx* instruments

• Connecting your LX instrument to the Internet has boundless possibilities

• The initial version allows you to send flights via email, later versions of the firmware will support the download of firmware and database updates along with connection to the SeeYou Cloud and OLC for flight upload. Remote support and diagnostics, weather information and NOTAM’s are all possibilities for the future

*Please note, not all hardware versions will be supported in the first version release.



1021006 Remote control LX8000, LX 9000 Stick, Select version at Add to Cart
1021011 Remote control LXS80, S8 CAN Stick, Select version at Add to Cart



1041022 Compass Module Does not include Splitter unit
1041015 Flarm ACL Anti Collision Light triggered by Flarm
1021020 S7  Bluetooth Module



1041016  NMEA bridge (standard GPS and Flarm) Splitter not included
1041016A Radio bridge for Funkwerk (ATR833) Splitter not included
1041016B Radio/transponder bridge for Becker (BXP6402, AR6201, RT6201, RCU6201, AR6203) Splitter not included
1041016K Radio bridge for Dittel (KRT2) (485 spliter not included)
1041016T Radio/transponder bridge for Trig (TY91/92 or TT21/22) Splitter not included
1041020 485 Splitter unit

1041017 IGC approved sensor for gliders with JET engines
1041018 MOP2 IGC approved sensor for electric propulsion gliders
1041019 Flap Sensor does not include splitter   Connect to the 485 Buss  LX80xx, LX90XX
1055041 Flap Sensor & Indicator Stand alone

1041021 LXNAV WiFi  for LX80xx & 90xx instruments software and dongle  (Key & link to software will be emailed)
1055039 Li-Ion Battery for Nano  Nano III

Battery can be replaced without affect the IGC security of the Nano or Nano3   open only the battery compartment and not any other part of the Nano. To open the battery compartment, remove the screws from the bottom of the Nano or Nano3.

V3BAPAC V3 Backup Battery Pack   Holds 8 AA batteries ON-OFF Panel switch will power the V3 for approx 15 hrs

Switch has 2 positions Main Glider battery,  Backup battery.

  In Stock
V3UPDA V3  Firmware Update cable,  is used to update the firmware in a S3 variometer with the LX S7 PC update tool. 12V power leads are providing for powering the S3 with a 12V battery or 12v wall power supply.  If you PC does not have a serial port you will also need a USB to serial adaptor.

In Stock

Features Flarm LED FlarmView 57 FlarmView FlarmView 2
Display LED QVGA 320 X 240 px QVGA 320 X 240 px QVGA 320 X 240 px
Size 42 x 25 x 5mm 57mm hole 65 x42 x 9mm 65 x 42 x 18mm
A/C MODE warnings Yes Yes Yes Yes
PCAS warnings Yes Yes Yes Yes
Flarm & Powerflarm compatibility Yes Yes Yes Yes
Downloaing flight from Flarm Yes Yes Yes
SD card for data interchange Yes Yes00 Yes
USB interface Yes
Task navigation Yes
Waypoint navigation Yes
Airspace display Yes

FlarmLED Indicate the direction of the other aircraft

  • Extremely bright bicolor LEDs
  • Pushbutton, to adjust beep volume
  • Nearmode function
  • PCAS warnings - undirected
  • Adjustable baudrate
  • Slave mode
  • Progress indication (during flight transfer, firmware updates, obstacle updartes...)
  • Serial RS232 input/output
  • 12 bicolor LEDs for direction
  • 5 LEDs for vertical angle
  • 3 LEDs for GPS, Rx and Tx indication
  • Power input 9-16v DC
  • Cnsumption  ~ 10mA at 12v
  • 42 mm X 25 mm X 5 mm
  • Weight ~ 10g

FlarmView

  • Color display
  • QVGA resolution 320*240 pixels
  • Sunlight readable
  • Small size - Dimensions(W x H x D): 65 x 42 x 9 mm
  • Extremely slim 9mm
  • Loud acoustic warning
  • Color warnings
  • A/C MODE traffic (undirected warnings)
  • Supports latest flarm dataport specificationVer.6
  • Compatible with Flarm and PowerFlarm
  • FlarmNet database + User database
  • intuitive user interface
  • 12V supply (may not work on old hardware designs, where only 3.3Volts are provided. For such cases we offer an adapter)

FlarmView2

Ideal navigation solution for flarm equipped gliders  (TSK, WP, AS, Flarm, PCAS indicator etc...)

Main features

  • A/C MODE traffic (undirected warnings)
  • Task navigation
  • Waypoint navigation
  • Airspace display (CUB files)
  • Downloading Flights from flarm to microSD
  • Well known LXNAV intuitive user interface
  • Loud acoustic warning
  • Color warnings
  • FlarmNet database
  • Converting IGC flights to KML
  • Compatible with Flarm and PowerFlarm
  • Supports latest flarm dataport specificationVer.6





FlarmView 57mm

Main features

  • Loud acoustic warning
  • Color warnings
  • A/C MODE traffic (undirected warnings)
  • Supports latest flarm dataport specificationVer.6
  • Compatible with  Flarm  and PowerFlarm
  • FlarmNet database + User database
  • intuitive user interface
  • 12V supply (may not work on old hardware designs, where only 3.3Volts are provided. For such cases we offer an adapter)
  • Easy firmware update via SD card
1041013 Flarm LED

In Stock

1021019 FlarmView Display

In Stock

1021025 FlarmView Display 57mm

In Stock

1021040 FlarmView II Display / with Nav functions

In Stock

1055033  FlarmView II Short Arm  3.4"  9/16" Ball

   In Stock

1055034  FlarmView II Long Arm  5"   9/16" Ball

  In Stock

1055035 FlarmView LED Short Arm 3.5" 9/16" Ball

   In Stock

1055036 FlarmView LED Long Arm 5.1" 9/16" Ball

  In Stock



AHRS

  • Altitude Heading Reference System

  • Available for the LX9000, LX8080, LX8000



1021015 AHRS Attitude Heading Reference System Requires V9 Vario Module

LX Styler

Customization tool for LX8000 and LX9000

LXStyler is a customization tool for the LX8000 and LX9000. With it you can modify existing navigational pages or add new navigational pages. It is possible to choose from 80 different data symbols to suit your needs. You can also change the shape and size of an airplane or remove unnecessary elements.


Free   http://www.lxnav.com/download/software.html     LXStyler Download

LXSim

Simulator for LX8000 and LX9000 for Windows operating system

LXSim simulator is a fully functional simulator of LX8000 and LX9000, which is working on Windows operating system. You can select and replay any flight stored in IGC file format. Press Ctrl+Enter to enter full screen mode. Click on SD card to insert or remove SD card.
Download from LXNAV site.

Free  LXSIM Download

How to put your area terrain maps in the LXSim


Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
