Peiker Acustic



TM170 Dynamic Microphone



ME510 Electret/Standard Microphone



TM168 Dynamic Amplified Microphone / Electret

No longer offered

Use Peiker Electret ME510.  I have tested and found the New ME510 offers improved sound quality.

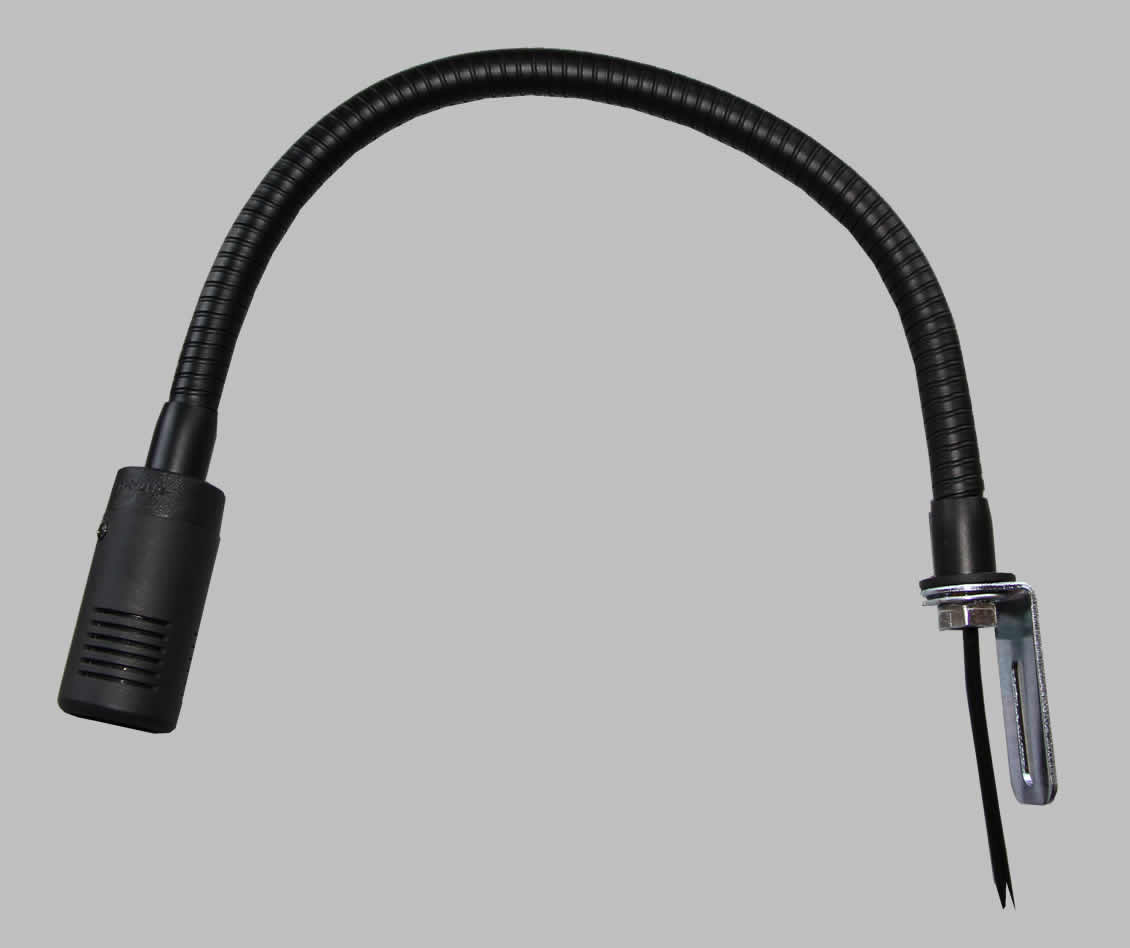

Peiker Dynamic  Boom Microphone

  • Use with Becker, Dittle, Filser,

Yellow Mic +

Red Mic - (Ground)

Shield to Shield - Ground



Peiker Electret ME510 Microphone
  • Use with Microair, Trig TY91

Red Mic +

White  (Mic -  Gnd)

Shield to Shield - Ground

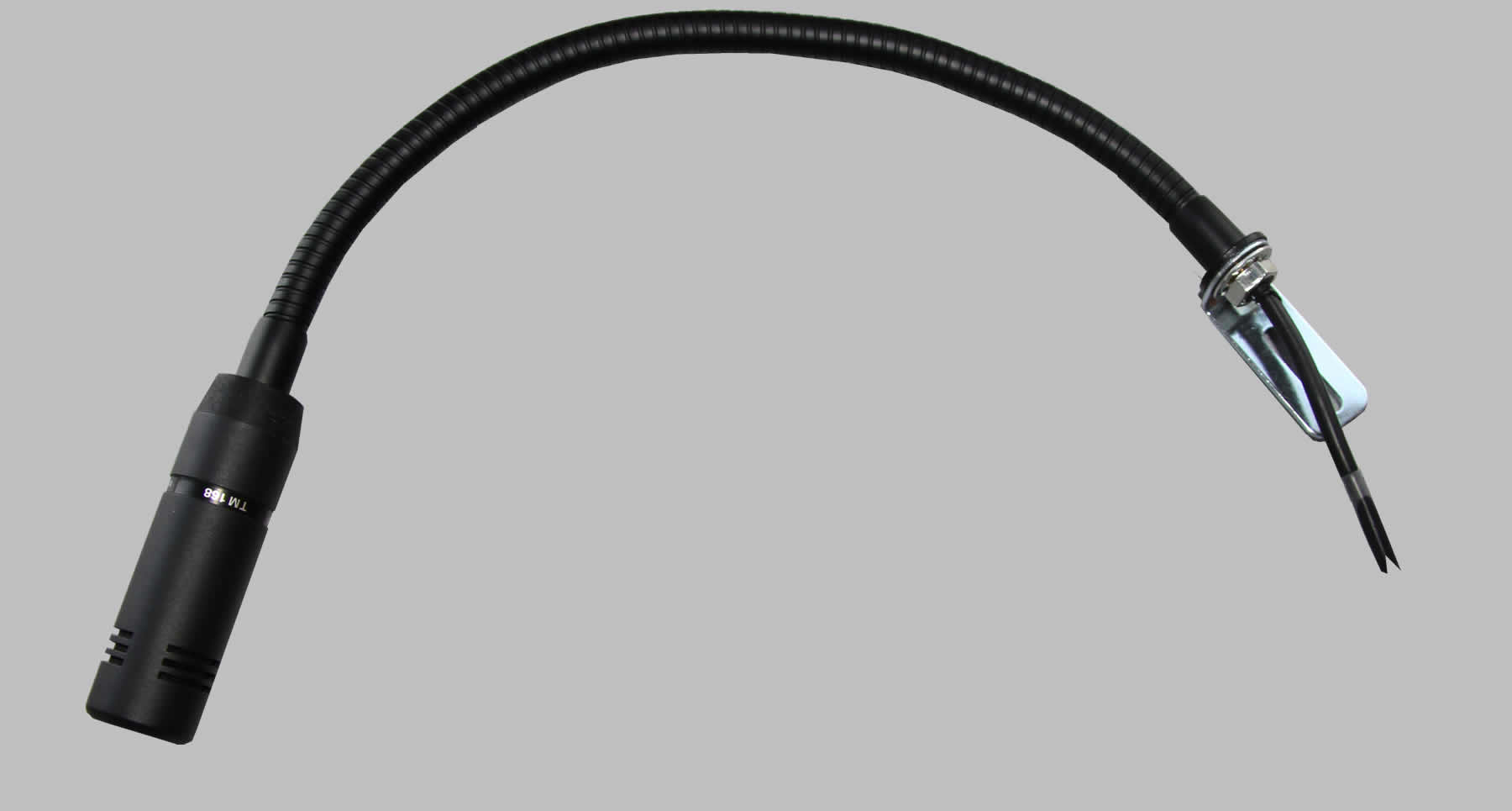

Peiker Dynamic Amplified Boom Microphone
  • Use with Microair, Trig TY91

Red Mic +

White Mic - (Ground)

Shield Ground



Speaker  8 Ohm, 5W



Part #     Order
2120 ME510 Microphone Electret/Standard  on 11.8x450mm gooseneck Black Finish with L-bracket,  Red  Mic+,  White Mic-(Ground), Shield Gnd.  Total length with L-Bracket 585 mm- 23" Use with Microair, Trig TY91, XCOM, Flightline

2118 TM170 Microphone Dynamic on 11.8x450mm gooseneck Black Finish with L-bracket,  Yellow Mic +, Red Mic -, Shield GND Total Length with L-Bracket 545mm- 21.5"  Use with Becker, Dittel, Filser
  TM168 Microphone Standard Amplified on 11.8x450mm gooseneck Black Finish  with L-bracket, Yellow Mic+ Red, White Mic - Shield Gnd  Total length 545mm- 21.5"  Use with Microair, Trig TY91, XCOM, Flightline (This is a dynamic microphone with an amplifier attached to the input cable to make it have the  Electret/Standard specifications).

No longer offered replaced by the ME510 that has much better sound quality.
1008008  Speaker  8 Ohm, 5W




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
