Power for both your Ipaq and GPS 12v or 5v

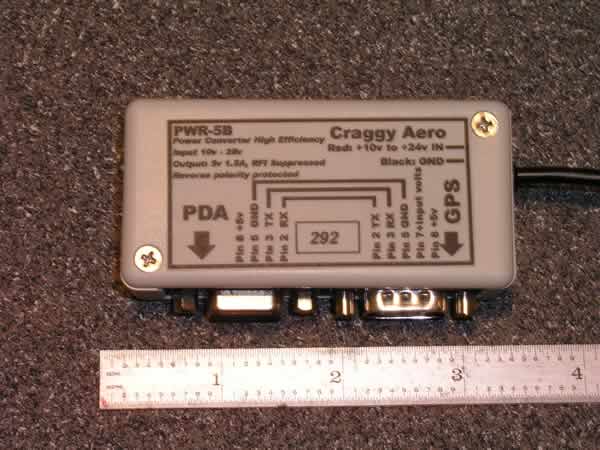

PWR-5B 86% efficient power converter. RFI
size (3.2" X 1.6" X .8") converts +12 v to+ 5v, +3.3v to power both
GPS and Ipaq. GPS Data Pass through.
Reverse polarity protection.
DB9 connectors supply power to Ipaq and GPS through the connection cables.
||Power Converter, +12v to 5v, 2
DB9 Connections. Supplies +5v to Pin 8, GND for IPAQ, and +12v to Pin
7, 5v to Pin 8 GND for GPS. RX, TX pass through. Reverse polarity
protection. RFI Suppression.
