Cables Mounts, and Kits in stock for immediate
shipment!
|
|
Compaq IPAQ
3100, 3600 or
3700 Series
 |
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
 |
Ipaq 38xx, 5xx, 54xx, 55xx, 4705
Kits with
Ventus Custom Cradle
 |
|
Power Converters for both you Ipaq & GPS (,+5v or
+12v) 86% efficient power converter. RFI
Suppression.
 |
PWR-5B Power Converters Click for more details |
PWR-5B Power Converters Click for more details |
|
|
Flarm
|
|
GPS27-KIT. Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC to Flarm Includes
PWR-5B Power
Converter, C38-3 and FL-1 cables to connect components.
|
GPS27V-KIT. Connection Kit
Compaq/HP IPAQ
38xx,
39xx, 4700, 5000 Series
Pocket PC to Flarm. Includes
PWR-5B Power Converter, Ventus
Custom Cradle and FL-1
cables to connect components.
RAM Arms |
Cambridge Aero Instruments
DDV 302
 |
C37-3 Connection Kit $50 See Cable
C37-3 Below to Order |
C38-3 Connection Kit
$50 See Cable C38-3 Below to
Order |
CAI 302 Ventus Custom Cradle Kit
Ipaq 38xx, 39xx,.51xx, 54xx, 55xx, Ipaq 4705
Cradle connects directly to the 302, be
sure and order the RAM Arms
|
Cambridge Aero Instruments
GPS-NAV
 |
GPS1-KIT. Connection Kit Compaq IPAQ
3100, 3600, or 3700 Series
Pocket PC to Cambridge GPS-NAV. Includes PWR-5B Power Converter,
C37-3 and
C38-5 cables to connect components.
 |
GPS2-KIT. Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC to Cambridge GPS-NAV. Includes
PWR-5B Power
Converter, C38-3 and C38-5 cables to connect components.
|
GPS2V-KIT. Connection Kit
Compaq/HP IPAQ
38xx,
39xx, 4700, 5000 Series
Pocket PC to Cambridge GPS-NAV. Includes
PWR-5B Power Converter, Ventus
Custom Cradle and C38-5
cables to connect components.
RAM Arms |
- Volkslogger
- w/Round Binder connector (12V)
|
GPS13-KIT. Connection Kit
Compaq IPAQ 3100, 3600 or 3700 series Pocket PC to Volkslogger with Binder
Round
connector. Includes cables C37-3, CV-2 and PWR-5B
Power Converter (supplies +5v
to the IPAQ and +12v to the Volkslogger).
 |
GPS14-KIT.
Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series Pocket PC to Volkslogger with Binder Round
connector. Includes cables C38-3, CV-2 and
PWR-5B Power Converter
(supplies +5v to the IPAQ and +12v to the Volkslogger).  |
GPS14V-KIT. Connection Kit
Compaq/HP IPAQ
38xx,
39xx, 4700, 5000 Series
Pocket PC to Volkslogger with round binder connector Includes
PWR-5B Power Converter, Ventus
Custom Cradle and CV-2
cable to connect components.
RAM Arms |
Volkslogger
w/ RJ-45 connector
(12 V)
 |
GPS3-KIT. Connection Kit
Compaq IPAQ 3100, 3600 or 3700 series Pocket PC to Volkslogger with RJ-45
connector. Includes cables C37-3, CV-1 and PWR-5B Power Converter (supplies +5v
to the IPAQ and +12v to the Volkslogger).
|
GPS5-KIT.
Connection Kit CCompaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC to Volkslogger with RJ-45
connector. Includes cables C38-3, CV-1 and PWR-5B Power Converter
(supplies +5v to the IPAQ and +12v to the Volkslogger).
|
GPS5V-KIT. Connection Kit
Compaq/HP IPAQ
38xx,
39xx, 4700, 5000 Series
Pocket PC to Volkslogger with RJ45 square connector. Includes
PWR-5B Power Converter, Ventus
Custom Cradle and CV-1
cable to connect components.
RAM Arms |
Gramin GPS35 or GPS18
& Borgelt B50
  |
|
GPS17-KIT. Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to Garmin GPS35 or GPS18 and Borgelt B50. Includes cables C38-3, CB35-1
and PWR-5B Power Converter (supplies +5v to the IPAQ and power to the
Garmin GPS35).
|
|
| B500 VE,
Volkslogger w/RJ45 Connector
|
|
GPS22-KIT
Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to Volklsogger w/RJ45 Connector. Includes cables C38-3, CV-1
and B500PWR-5B Power Converter with declare switch..
|
|
| B500 VE,
Volkslogger w/Round Connector
|
|
GPS23-KIT
Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to Volklsogger w/Round Connector. Includes cables C38-3, CV-2 and
B500PWR-5B Power Converter with declare switch.
|
|
Volkslogger
w/ RJ-45 connector
(12 V)
& Borgelt B50
|
GPS4-KIT. Connection Kit
Compaq iPAQ 3100, 3600 or 3700 series Pocket PC to Volkslogger with RJ-45
connector and Borgelt B50. Includes cables C37-3, CVB-1 and PWR-5B Power
Converter (supplies +5v to the IPAQ and +12v to the Volkslogger).
|
GPS6-KIT. Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to Volkslogger with RJ-45
connector and Borgelt B50. Includes cables C38-3, CVB-1 and PWR-5B Power
Converter (supplies +5v to the IPAQ and +12v to the Volkslogger).
|
|
Volkslogger
w/ Binder Round Connector
(12 V)
& Borgelt B50
|
|
GPS16-KIT. Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to Volkslogger with Binder Round
connector and Borgelt B50. Includes cables C38-3, CVB-2 and PWR-5B Power
Converter (supplies +5v to the IPAQ and +12v to the Volkslogger).
 |
|
| Volkslogger
w/RJ45 connector to Ilec SN-10 sn xx0100 up, Ipaq Software 2.31
|
|
GPS29-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC to Garrecht Volkslogger w/RJ-45 square connector to IIec SN-10 (sn xx0100 up.)
Includes C38-3 and CVIQSN-1 Cables, and PWR-5B Power converter.
|
GPS29V-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC to Garrecht Volkslogger w/RJ-45 square connector to IIec SN-10 (sn xx0100 up.)
Includes Ventus Cradle and SN10VLRJ45231 Cable, and PWR-5B Power converter.
|
| LX Colibri
 |
|
GPS12-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC, Filser Colibri.
Includes C38-3, C38-12, and PWR-5B Power Converter to provide +5v to Ipaq
and 12v to the Colibri.
|
GPS12V-KIT Connection Kit
Compaq/HP IPAQ 38xx,
39xx, , 4700, 5000 Series
Pocket PC, Filser Colibri.
Includes Ventus Custom Cradle, C38-12, and PWR-5B Power Converter to provide +5v to Ipaq
and 12v to the Colibri.
|
| LX Colibri,
Borgelt B500 VE
|
|
GPS24-KIT
Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC
to LX Colibri. Includes cables C38-3, C38-12 and B500PWR-5B Power
Converter with declare switch.
|
|

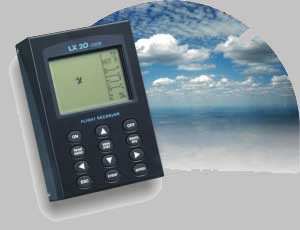

| Filser LX20
Old Style DB9 connector on Bottom
|
|
GPS20-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC Filser
LX 20 Old style with DB9M Connector. Includes C38-3, C38-15 cable, and PWR-5B Power Converter to
provide +5v to the Ipaq and +12v to the LX20
 |
|
|
Filser LX 20, Colibri, B50
|
|
GPS15-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC Filser Colibri, Borgelt
B50. Includes C38-3, CCB-1 Y cable, and PWR-5B Power Converter to
provide +5v to the Ipaq and +12v to the Colibri.
|
|
|

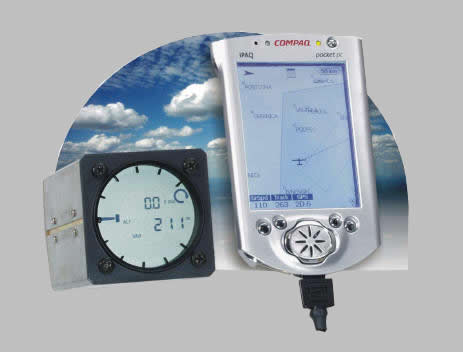

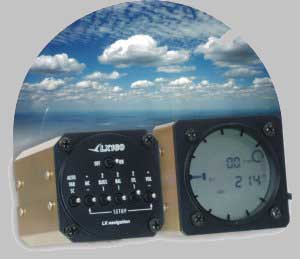

Filser LX20, LX160
  |
|
GPS18-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC Filser LX160
Ver 2.XX and up, LX20. Includes PWR-5B Power Converter to provide
+5v to the Ipaq and +12v to the LX20, C38-3 Cable and LX160/20 to connect both instruments.
 |
|
|
Filser LX5000
 |
|
GPS9-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC, Filser LX5000.
Includes C38-3, C38-9, and PWR-5B Power Converter to provide +5v to Ipaq.
 |
|
| LX7000
WinPilot Pro
|
|
GPS10-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 5000 Series
Pocket PC,
LX7000. Includes C38-3, C38-14, and PWR-5B
Power Converter to provide +5v to Ipaq.
 |
|
| LX7007 PRO
OR
LX1600
|
|
|
LX7007 Ventus Custom Cradle Kit
LX1600
Ventus Custom Cradle Kit
Ipaq 38xx, 39xx, 51xx, 54xx, 55xx, Ipaq 4705
Cradle connects directly to the LX1600 or
LX7007 PRO, be
sure and order the RAM Arms
|
| Westerboer
910/921, Volkslogger
 |
|
GPS11-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC, Westerboer VW 921/922, Volkslogger.
Includes C38-3, CVW-1 and PWR-5B Power Converter to provide +5v to Ipaq.
 |
|
|
|
|
GPS26-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC, Westerboer 921/922, Colibri.
Includes C38-3, CCW-1 and PWR-5B Power Converter to provide +5v to Ipaq.
 |
|
| Garmin GPS with Round 4 Pin
Connector 12 v to GARMIN +5v to Ipaq
 |
|
GPS19-KIT Connection Kit
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC, Gramin GPS with Round Connector
12v. Includes C38-3, C38-13 and PWR-5B Power Converter to provide +5v to
Ipaq and 12v to the GPS
 |
|
Cables & Connection Kits
Cables and Kits in stock for immediate shipment!
| |
Description |
Price |
|
| C38-1 |
Cable 1m, Bare leads to
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series
Pocket PC. Leads - Power +5v DC, GRND, GPS Data In, GPS Data Out.
Wiring Diagram.
|
$45 |
|
| C38-2 |
Cable 3m, Bare leads to
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data In, GPS Data
Out. Wiring Diagram. |
$55 |
|
| C38-3 |
Cable 1m, DB9m to
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data
In, GPS Data Out. Wiring Diagram Included. Connect to PWR-5B
Power Supply or CAI DDV 302 to provide +5v to pin 8 |
$50 |
|
| C38-4 |
Cable 3m, DB9m to
Compaq/HP IPAQ
22xx, 38xx,
39xx, 4000, 4700, 5000 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data
In, GPS Data Out. Wiring Diagram Included. Connect to PWR-5B
Power Supply or CAI DDV 302 to provide +5v to pin 8 |
$60 |
|
| C38-5 |
Cable 1m, DB9m to DB9f. RX, TX, &
Ground straight through. |
$30 |
|
| C38-6 |
Cable 3m, DB9m to DB9f. RX, TX, &
Ground straight through |
$40 |
|
| C38-7 |
Cable 1m, DB9m to DB9f. (RX, TX, Crossed) & Ground straight through. |
$30 |
|
| C38-8 |
Cable 3m, DB9m to DB9f. (RX, TX,
Crossed) & Ground straight through. |
$40 |
|
| C38-9 |
Cable 1m, DB9f to DB9f.
(RX, TX Crossed) & Ground Straight through. |
$30 |
|
| C38-10 |
Cable 1m, DB9f to DB9f.
TX, Ground. TX only |
$30 |
|
| C38-11 |
Cable 1m DB9f to DB9f. RX, TX,
Ground straight through. |
$30 |
|
| C38-12 |
Cable 1m, PWR-5B to Lx
Colibri. DB9f to RJ6 phone connector. Supplies RX,
TX, Ground and 12v to power Colibri. |
$40 |
|
| C38-13 |
Cable 1m, PWR-5B to Garmin
Round 4 Pin Connector. DB9F to Round 4 Pin, Supplies 12v, RX, TX, Ground to the Garmin. |
$40 |
|
| C38-14 |
Cable 1 M, Y cable for
LX7000 Connection to Ipaq, Includes declare Switch. |
$75 |
|
| C38-15 |
Cable 1m, PWR-5B to DB9F for
connection of Old Style LX20. DB9F to DB9F Supplies 12v, RX, TX,
Ground |
$40 |
|
| C37-1 |
Cable 1m, Bare leads to Compaq
3700 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data In, GPS Data
Out. Wiring Diagram. |
$45 |
|
| C37-2 |
Cable 3m, Bare leads to Compaq
3700 Series Pocket PC. Leads - Power +5v DC, GRND, GPS GPS RX TX. Wiring Diagram. |
$55 |
|
| C37-3 |
Cable 1m, DB9m to Compaq
3700 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data
In, GPS Data Out. Wiring Diagram Included. Connect to PWR-5B
Power Supply or CAI DDV 302 to provide +5v to pin 8 |
$50 |
|
| C37-4 |
Cable 3m, DB9m to Compaq
3700 Series Pocket PC. Leads - Power +5v DC, GRND, GPS Data
In, GPS Data Out. Wiring Diagram Included. Connect to PWR-5B
Power Supply or CAI DDV 302 to provide +5v to pin 8 |
$60 |
|
| CV-1 |
Cable, 1 m,
PWR-5B
Power Converter to Volkslogger with RJ-45 connector. DB-9f
to RJ-45. Passes RS-232 transmit and receive, 12 V power and ground
leads from PWR-5B Power Converter to Volkslogger. |
$40 |
|
| CV-2 |
Cable, 1 m,
PWR-5B
Power Converter to Volkslogger with Binder Round connector. DB-9f
to Binder Connector. Passes RS-232 transmit and receive, 12 V power and ground
leads from PWR-5B Power Converter to Volkslogger. |
$40 |
|
| CVSN-1 |
Cable, 1m, Garrecht Volkslogger w/RJ-45 Square Connector
to Ilec SN-10 (sn xx0100 up). Connects Volkslogger to Ilec SN-10
and provides +12 volt to Volkslogger from SN-10. |
$40 |
|
| CVIQSN-1 |
Cable, Volkslogger, PWR-5B, Ilec
SN-10, Connects Volkslogger to SN10 to PWR-5B. Supplies 12v to
Volkslogger from the PWR-5B. Passes RX, TX to Ipaq and SN-10 through PWR-5B |
$70 |
|
| SN10RJ45231 |
Cable, Volkslogger, PWR-5B, Ilec
SN-10 Software 2.31, Connects Volkslogger to SN10 to PWR-5B. Supplies 12v to
Volkslogger from the PWR-5B. Passes RX, TX to Ipaq and SN-10 through PWR-5B |
$75 |
|
| CCB-1 |
Y Cable, 1 m, Borgelt B50,
PWR-5B Power Converter to Colibri. Y Cable DB-9f to PWR-5B
Power Converter, DB-9m to
Borgelt B50, to Colibri RJ6. Passes
RS-232 transmit and receive, power and ground leads from PWR-5B Power Convertor to
Colibri. This Y cable includes a switch for mounting in the panel
to accomplish electronic flight declarations from WinPilot to the Colibri. It has two settings: "Flight", and
"Declaration". |
$75 |
|
| CB35-1 |
Y Cable, Borgelt B50,
PWR-5B Power Converter to Garmin GPS35 or GPS18. Y Cable DB-9f to PWR-5B
Power Converter, DB-9m to
Borgelt B50, DB9 to Garmin GPS35. Passes
RS-232 transmit and receive, power and ground leads from PWR-5B Power Convertor to
GPS35. |
$75 |
|
| CVB-1 |
Y Cable, 1 m, Borgelt B50,
PWR-5B Power Converter to Volkslogger with RJ-45 connector. Y Cable DB-9f to
PWR-5B
Power Converter, DB-9m to
Borgelt B50, RJ-45 to Volkslogger, Passes
RS-232 transmit and receive, 12 V power and ground leads from PWR-5B Power Converter to Volkslogger. This Y cable includes a switch for mounting in
the panel to accomplish electronic flight declarations from WinPilot
to the Volkslogger. It has two settings: "Flight", and
"Declaration". |
$75 |
|
| CVB-2 |
Y Cable, 1 m, Borgelt B50,
PWR-5B Power Converter to Volkslogger with Binder Round connector. Y Cable DB-9f to
PWR-5B
Power Converter, DB-9m to
Borgelt B50, RJ-45 to Volkslogger, Passes
RS-232 transmit and receive, 12 V power and ground leads from PWR-5B Power Converter to Volkslogger. This Y cable includes a switch for mounting in
the panel to accomplish electronic flight declarations from WinPilot
to the Volkslogger. It has two settings: "Flight", and
"Declaration". |
$75 |
|
| CV1-PC |
Volkslogger PC
Upload/Down Load Cable
DB9 to RJ45, 120 volt power plug converter |
$50 |
|
| CV2-PC |
Volkslogger PC
Upload/Down Load Cable
DB9 to Binder Round Connector, 120 volt power plug converter |
$50 |
|
| LX160-20 |
LX160, LX20 Cable, with
Declare Switch,DB-9f to LX160,
RJ-6 to LX20, Passes
RS-232 transmit and receive, 12 V power and ground leads from PWR-5B Power Converter to
LX20. This Y cable includes a switch for mounting in
the panel to accomplish electronic flight declarations from WinPilot
to the LX20. It has two settings: "Flight", and
"Declaration". |
$77 |
|
| CLXC |
LX1600/Colibri Cable
RJ6 to RJ6 Connects LX1600 to Colibri. Powers Colibri from LX1600 |
$20 |
|
| CVW-1 |
Y Cable, 1 m,
Westerboer 921/922,
PWR-5B Power Converter to Volkslogger with RJ-45 connector. Y Cable DB-9f to
PWR-5B
Power Converter, DB-9m to
Westerboer, RJ-45 to Volkslogger, Passes
RS-232 transmit and receive, 12 V power and ground leads from PWR-5B Power Converter to Volkslogger. This Y cable includes a switch for mounting in
the panel to accomplish electronic flight declarations from WinPilot
to the Volkslogger. It has two settings: "Flight", and
"Declaration". |
$75 |
|
| CCW-1 |
Y Cable, 1 m,
Westerboer 921/922,
PWR-5B Power Converter to Colibri with RJ-6 Connector. Y Cable DB-9f to
PWR-5B
Power Converter, DB-9m to
Werterboer, RJ-6 to Colibri, Passes
RS-232 transmit and receive, 12 V power and ground leads from PWR-5B Power Converter to
Colibri. This Y cable includes a switch for mounting in
the panel to accomplish electronic flight declarations from WinPilot
to the Colibri. It has two settings: "Flight", and
"Declaration". |
 |
|
| FL-1 |
Cable, 1 m,
PWR-5B
Power Converter to Flarm with RJ-45 connector. DB-9f
to RJ-45. Passes RS-232 transmit and receive, 12 V power and ground
leads from PWR-5B Power Converter to Flarm |
 |
|
|
