| Circuit Breakers - 2TC Series Single--Phase, Miniature Ambient
Compensated |
|
 |
 |
| Alternate Number: MS3320-1 |

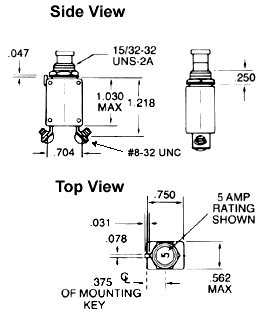

| Circuit Breakers -- 2TC Series |
1–25 amp, single–phase, miniature ambient compensate
Miniature size
- Trip–free design
- Current ratings (1 to 25 amps)
- High vibration resistance
- High interrupting capacity
- Coordinated ratings
- AS58091 qualified; Military Approvals, FAA PMA
- Typical end use: Aircraft power distribution systems
|
Specifications: |
|
Part Number |
Description |
Price |
|
|
20000005 |
2TC2-X, X=Amps Kilxon
Circuit Breaker MS33320-X Select AMPS at Add
to Cart (1 -25 Amp) |
 |
 |
If the Kilxon Breaker you need is not listed
Please call.
| Circuit Breakers - 7274-11 MS
22079 Series Single--Phase, Miniature Ambient
Compensated |
|
 |
| X AMP KLIXON CIRCUIT BREAKER (7274-11-5) |
| Alternate Number: MS22073-5 |
Single--Phase, Non-Compensated, Low Amp, High
Performance
- Uses minimum space
- Light weight
- Trip--free design
- MIL-C-5809 qualified
- Current ratings (½ to 20 amps)
- High vibration resistance
|
|
| 5 AMP KLIXON CIRCUIT BREAKER (7274-11-5) |
| Alternate Number: MS22073-5 |
| Vibration |
10 G's minimum, 50-500 Hz |
| Mechanical Shock |
35 G's |
| Acceleration |
10 G's |
| Weight |
33 gm max. |
Endurance
2500 cycles
5000 cycles
2500 cycles
5000 cycles
5000 cycles
|
120 VAC, 400 Hz Inductive
120 VAC, 400 Hz Resistive
30 VDC, Inductive
30 VDC, Resistive
Mechanical, no load |
| Trip Time |
|
| Load |
Seconds |
| 200% |
2-20 |
| 500% |
0.16-1.2 |
| 1000% |
0.046-0.8 |
Calibration
|
|
| Temp ºC |
Min. ULT Trip |
Max. ULT Trip |
| +22 |
115% |
150% |
| -55 |
135% |
180% |
| +71 |
90% |
130% |
|
|
|
|
|
| Part Number |
Description |
Price |
|
|
2000006 |
1/2 AMP KLIXON CIRCUIT BREAKER (7274-11-.5) |
|
|
|
2000007 |
X AMP KLIXON CIRCUIT BREAKER (7274-11-X)
Select Amps at Add to Cart (1 - 20 Amp) |
|
|
| Circuit Breakers - 7274-2 MS
26574 Series Single--Phase, Non-Compensated, Low Amp, High
Performance |
|
 |
| X AMP KLIXON CIRCUIT BREAKER (7274-2-5) |
| Alternate Number: MS26574-5 |
Single--Phase, Non-Compensated, Low Amp, High
Performance
- Uses minimum space
- Light weight
- Trip--free design
- MIL-C-5809 qualified
- Current ratings (½ to 20 amps)
- High vibration resistance
|
|
| 5 AMP KLIXON CIRCUIT BREAKER (7274-2-5) |
| Alternate Number: MS26574-5 |
| Vibration |
10 G's minimum, 50-500 Hz |
| Mechanical Shock |
35 G's |
| Acceleration |
10 G's |
| Weight |
28 gm max. |
Endurance
2500 cycles
5000 cycles
2500 cycles
5000 cycles
5000 cycles
|
120 VAC, 400 Hz Inductive
120 VAC, 400 Hz Resistive
30 VDC, Inductive
30 VDC, Resistive
Mechanical, no load |
| Trip Time |
|
| Load |
Seconds |
| 200% |
2-20 |
| 500% |
0.16-1.2 |
| 1000% |
0.046-0.8 |
Calibration
|
|
| Temp ºC |
Min. ULT Trip |
Max. ULT Trip |
| +22 |
115% |
150% |
| -55 |
135% |
180% |
| +71 |
90% |
130% |
|
|
|
|
| Part Number |
Description |
Price |
|
|
2000008 |
X AMP KLIXON CIRCUIT BREAKER (7274-11-X)
Select Amps at Add to Cart (1 - 20 Amp) |
|
|
|
