Tefzel Wire - Mil27500
FAA approved "Tefzel" Mil-Spec teflon
insulated silver coated stranded copper wire has the ability to
self-extinguish flame, abrasion & corrosion resistant and designed to hold
up under vibration. Lower AWG is larger dia wire. |
| 18 & 22 Gauge Shielded Tefzel Wire -- MIL-27500/18
|
|
This wire is made up of the following layers starting
with the outer most layer (3 conductors shown):
- Tefzel Coating
- Shielded Braiding
- Tefzel Coating on each conductor
 |
| Part Number |
Description |
Price |
|
| 2000016 |
M27500-18TG2T14 Tefzel Shielded 18AWG 2
conductor |
 |
 |
| 2000003 |
M27500-22TG1T14 Tefzel Shield 22AWG 1 Conductor
Per Foot 22G 1C TEF |
 |
|
| 2000004 |
M27500-22TG2T14 Tefzel Shield 22AWG 2 Conductor
Per Foot 22G 2C TEF |
 |
|
| 2000010 |
M27500-22TG4T14 Tefzel Shield 22AWG 4 Conductor
Per Foot 24G 4C TEF |
 |
|
Tefzel Wire - MIL-27500
| Part Number |
Description |
Price |
|
| 18G TEF |
M22759/16-18-0 Tefzel 18AWG TEF
Pick Color when you add to cart. |
 |
|
| 20G TEF |
M22759/16-20-0 Tefzel 20AWG 20G TEF Pick
Color when you add to cart. |
 |
|
| 22G TEF |
M22759/16-22-6 Tefzel 22 AWG Per Foot 22G TEF
Pick Color when you add to cart |
 |
|
Circuit Breakers -- 2TC Series Single--Phase, Miniature Ambient
Compensated
- Minature Size
- Light weight
- Trip-free design
- MIL-C-5809 qualified
- Current rating (1 to 25 amps)
- High vibration resistance
- High interrupting capacity
Klixon single-phase TC devices are the smallest, lightest, high
performance aircraft circuit breakers available today.
They represent the state-of-the-art protection of today's aerospace
power systems.
Their light weight and small size make them especially well suited for
aircraft, avionics and electronic systems.
|
Part Number |
Description |
Price |
|
| 2TC2-1 |
2TC2-1, 1 amp Kilxon Circuit Breaker
MS3320-1 |
 |
|
| 2TC2-2 |
2TC2-2, 2 amp Kilxon Circuit Breaker
MS3320-2 |
 |
|
| 2TC2-3 |
2TC2-3, 3 amp Kilxon Circuit Breaker
MS3320-3 |
 |
|
| 2TC2-4 |
2TC2-4, 4 amp Kilxon Circuit Breaker
MS3320-4 |
 |
|
| 2TC2-5 |
2TC2-5, 5 amp Kilxon Circuit Breaker MS3320-5 |
 |
|
| 2TC2-7.5 |
2TC2-7.5, 7.5 amp Kilxon Circuit Breaker
MS3320-7.5 |
 |
|
| 2TC2-10 |
2TC2-10 , 10 amp Kilxon Circuit Breaker
MS3320-10 |
 |
|
| 2TC2-15 |
2TC2-15 , 15 amp Kilxon Circuit Breaker
MS3320-15 |
 |
|
| 2TC2-20 |
2TC2-20 , 20 amp Kilxon Circuit Breaker
MS3320-20 |
 |
|
For Additional Amp Rating Please call.
JONES Connectors
Jones Plug Male
Dimensions
Diameter: 0.691" (17.55 mm)
Length of Hood: 0.953" (24.21 mm)
Total Length: 1.05 in (33.33 mm) |
 |
Jones Socket Female
Dimensions
Diameter: 0.691" (17.55 mm)
Length of Hood: 0.953" (24.21 mm)
Total Length: 1.05 in (33.33 mm) |
 |
- Operating Voltage: 250 VAC RMS maximum
- Current Rating: 10 Amps
- Contact Resistance: 16 Milliohms maximum
- Solder lug terminals with .093" x .062"
(2.36mm x 1.57mm) wiring holes.
- Two-contact "Jones" connector is round,
all others are rectangular.
- For use in cable-to-panel and
cable-to-cable applications.
- Designed for light and medium duty.
- Plug prongs are .156" (3.96mm) wide and
.047" (1.19mm) thick.
- Polarized to prevent wrong-way insertion.
- Plugs have projecting flat blades, sockets
have recessed twin bellows.
|
- Cable clamps of zinc and clear irridite-plated
steel used for strain relief.
- UL Recognized-file E170218 (UL 1977),
E130965 (UL1863).
- CSA-LR31996.
- Insulation Material: Molded monoblock,
general purpose
phenolic, black UL94V-1
- Contact Material: Plug: Brass
- Socket: Phosphor bronze
- Contact Plating: Cadmium
- Operating Temperature: Up to +105°C
- Hood Material: UL 94V-0 rated
thermoplastic
|
|
Part Number |
Description |
Price |
|
| 2000019 |
Jones Plug Male 2 Contacts |
 |
|
| 2000020 |
Jones Socket Female 2 Contacts |
 |
|
Batteries
I don't sell batteries "Rage Battery" Does a much
better job! at a very reasonable price.
3M Dual Lock
Fasten your stuff with Dual Lock
| Fasten heavier items for a more permanent
bond. |
 |
- Rigid plastic stems interlock.
- Aggressive VHB adhesive backing.
- 1' Creates 1/2' of usable product (1/2' each side)
|
| Part Number |
Description |
Price/Per
Foot |
|
| Dual Lock 3M |
3 M Dual Lock Clear with VHB adhesive
backing 1" wide (1 Ft gives 1/2' of usable product) per
Foot |
 |
|
Plexus/Plastic Cleaner
|
 |
- CLEANS. Powerful, safe
cleaning without abrasives.
- PROTECTS. Seals the pores
of the plastic, keeping out contaminants and harsh chemicals.
- QUICK. Spray on and wipe
off application reduces man hours.
- CONVENIENT. Aerosol can
stores without evaporating and delivers exact amount intended.
- EXTENDS WINDOW LIFE SPAN.
Decreases window replacement frequency,
reducing life cycle costs.
- ANTI-STATIC. Stays
cleaner, longer.
- APPROVED FOR USE.
Approved by aircraft window manufacturers.
|
| Part Number |
Description |
Price/Per
Foot |
|
| 20214 |
Plexus/Plastic Cleaner 13oz aerosol |
 |
|
Aircraft Panel Hole Products
|
 |
 |
 |

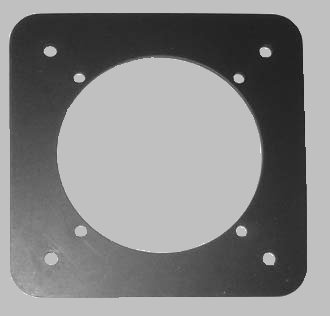

| Hole Reducer |
Spacer for Hole Reducer |
Cover Plate |
| Part Number |
Description |
Price/Per
Foot |
|
| 2000014 |
RP-1 3 1/8" to 2 1/4" Hole Reducer
Aluminum |
 |
|
| 2000021 |
RP-SP Spacer for 3 1/8" to 2 1/4" Reducer
Aluminum |
 |
|
| 2000022 |
CP-1FR Cover Plate 2 1/4" 57 mm Aluminum |
 |
|
| 2000023 |
CP-2FR Cover Plate 3 1/8" 80mm Aluminum |
 |
|
|
